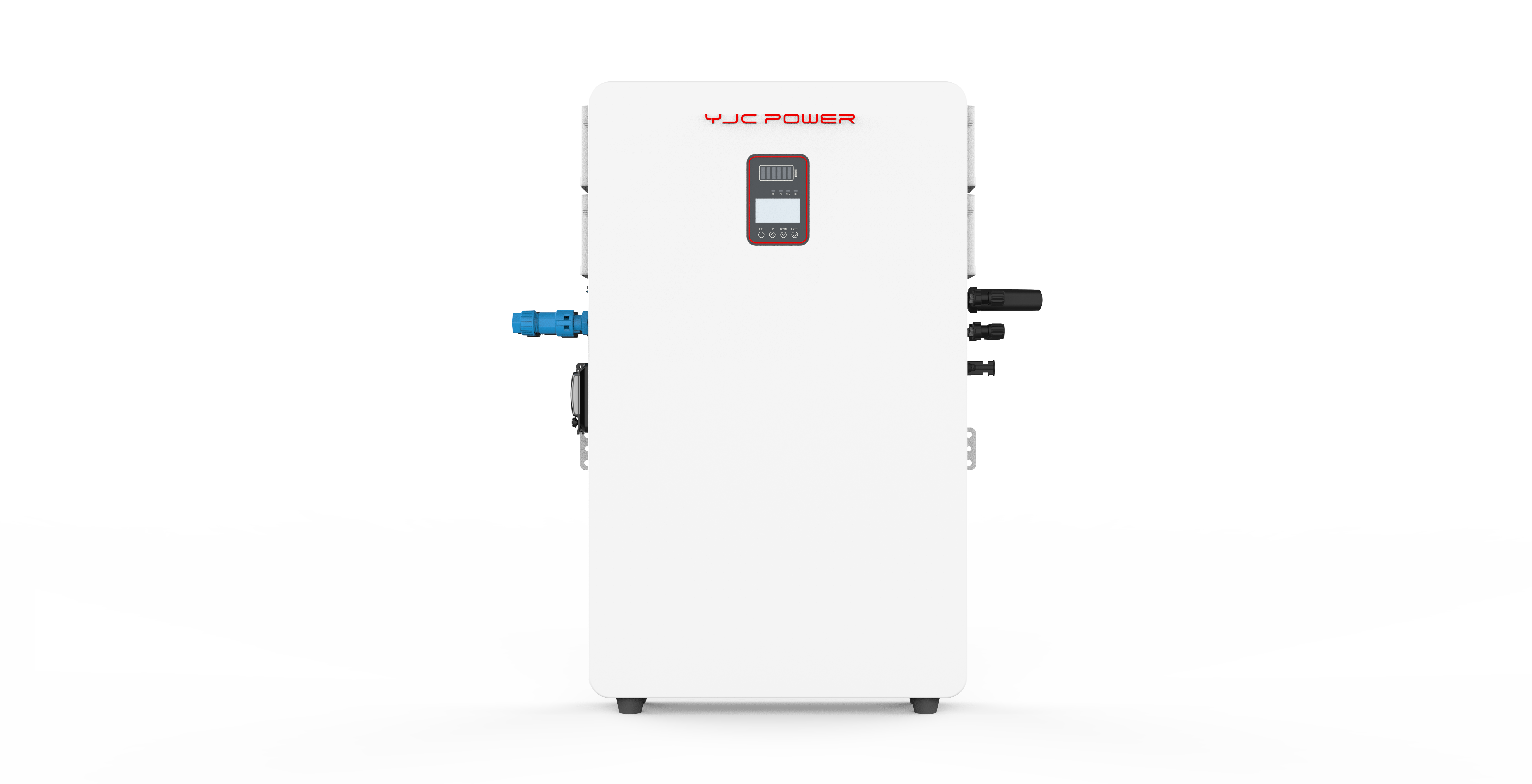

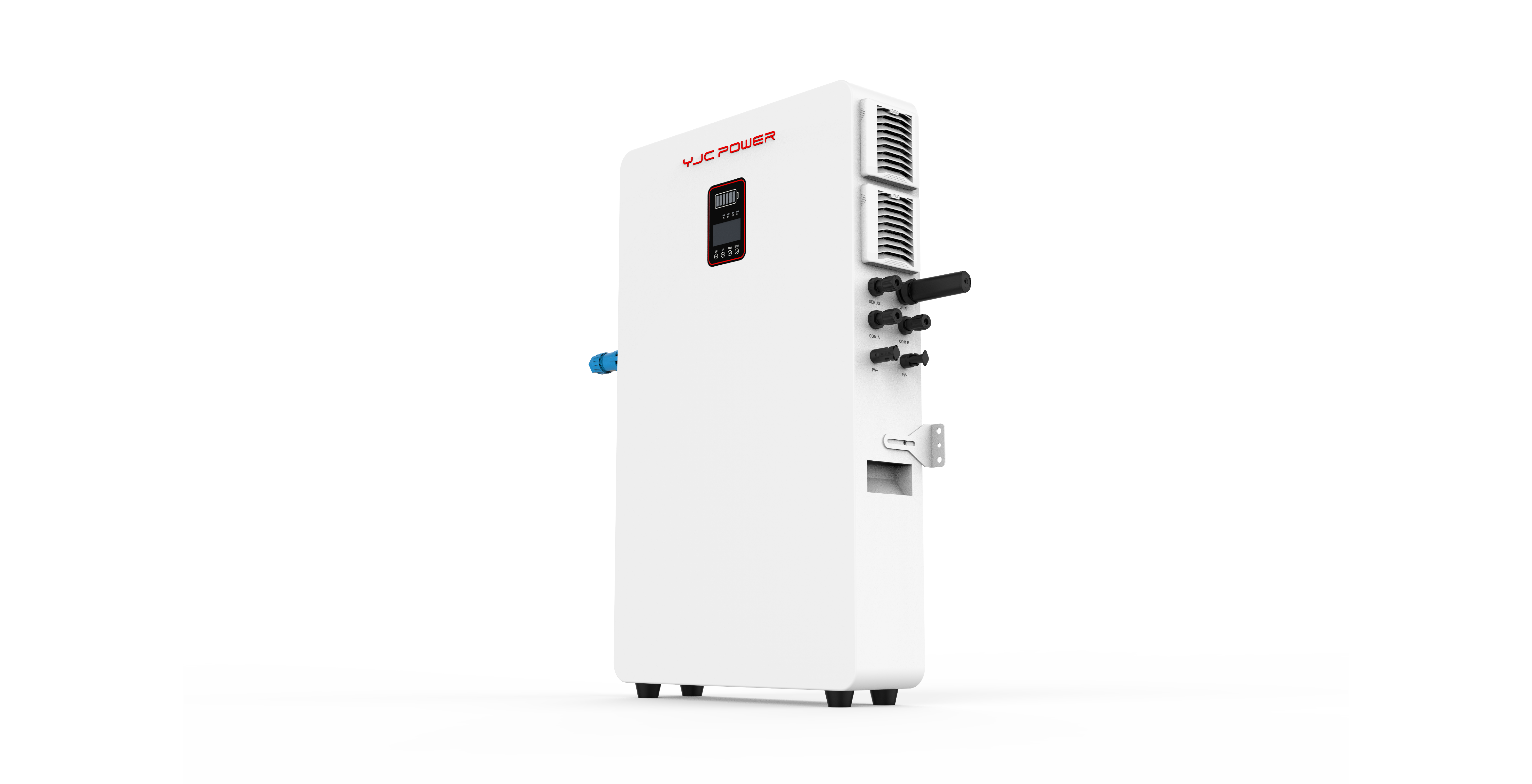

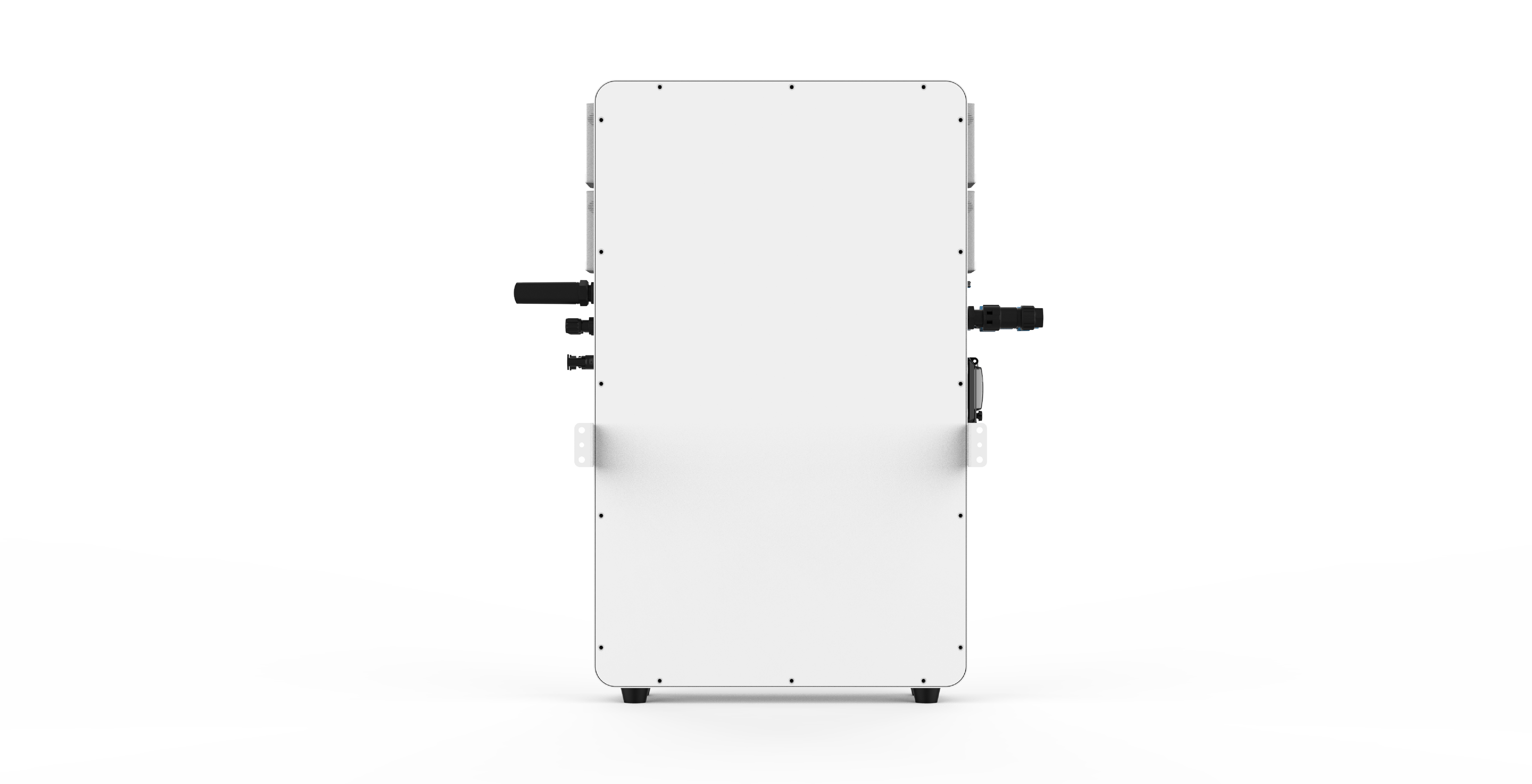

5kW 5.12kWh
All-in-One ESS
YJC-HES-L-A-5KW5.12kWh
5kW 5.12kWh
YJC-HES-L-A-5KW5.12kWh
Product Advantages
Integrated Inverter & LFP Battery All-in-One Unit
Reduces wiring and installation labor hours, delivering a turnkey, cost-effective system solution.
100Ah LFP Cells – Compact & Lightweight
Adopts highly reliable 100Ah lithium iron phosphate cells with smaller footprint and easier handling, offering an economical solution for residential users.
Space-Saving Rack-Mounted Design
Compact rack cabinet cuts BOS (Balance of System) costs and fits seamlessly in garages or equipment rooms.
Fast Plug-and-Play Installation
Simplified wiring and quick commissioning process for easier installation and faster power-on operation
Economical Residential ESS with Intelligent Peak Shaving
Optimized for daily energy management to cut electricity bills and maximize PV self-consumption rate.
Built-in MPPT Controller for Direct PV Connection
Integrated MPPT controller enables direct connection to solar panels to maximize photoelectric conversion efficiency and solar energy utilization.
Reliable Instant Backup Power as UPS Alternative
Switching time less than 10 milliseconds during power outages to guarantee uninterrupted operation of critical home appliances.
Long-Life LFP Technology Reducing Full Lifecycle Cost
High-durability LFP cells deliver up to 6000 cycles, extending service life and lowering replacement costs.
Advanced BMS with Real-Time Monitoring
Intelligent battery management system with active cell balancing and remote monitoring for enhanced safety.
Low Standby Power Consumption, Maintenance-Free Operation
Energy-saving design minimizes standby loss and requires no routine maintenance.
Product parameters
| Model | YJC-HES-L-A-5KW/5.12kWh |
| Input Parameters | |
| Input Wiring Standard | L+N+PE |
| Rated Input Voltage | 230VAC |
| Voltage Range | 90–280VAC±3V (APL Mode) 170–280VAC±3V (UPS Mode) |
| Frequency Range | 50Hz |
| Output Parameters | |
| Battery Inverter Rated Power | 5500W |
| PV Inverter Rated Power | 5500W |
| Output Voltage | 230VAC±5% |
| Output Frequency | 50Hz±0.1% |
| Waveform | Pure Sine Wave |
| Transfer Time | 10ms for computer equipment, 20ms for household appliances |
| Peak Power | 12400VA |
| Battery Parameters | |
| Rated Voltage | 51.2Vdc |
| Equalization Charging Voltage (Adjustable) | 57.6Vdc |
| Float Charging Voltage (Adjustable) | 54Vdc |
| Charger Parameters | |
| PV Charging Method | MPPT |
| Max PV Input Power | 8500W |
| MPPT Operating Voltage Range | 60–500Vdc |
| MPPT Optimal Operating Voltage Range | 360–430V |
| Max PV Input Voltage | 500Vdc |
| Max PV Input Current | 36A |
| Max Grid Charging Current | 100A |
| Display | |
| LCD Screen | Displays operating mode, load, input, output and other information |
| Environmental Parameters | |
| Weight | ≈65kg |
| Maximum Overall Dimensions (W×H×D) | 800×480×135mm |
| Operating Ambient Temperature | -10~50℃ |
| Operating Ambient Humidity | 20%~95% (Non-condensing) |
| Storage Temperature | -20~60℃ |
| Altitude | Rated for altitude ≤1000m; derated operation above 1000m, max 4000m, compliant with IEC62040 standard |
| Noise Level | ≤50db |
| Standards & Certifications | CE-EMC/IEC62619/UN38.3 |
Product parameters are for reference only, subject to confirmation by our sales team.
