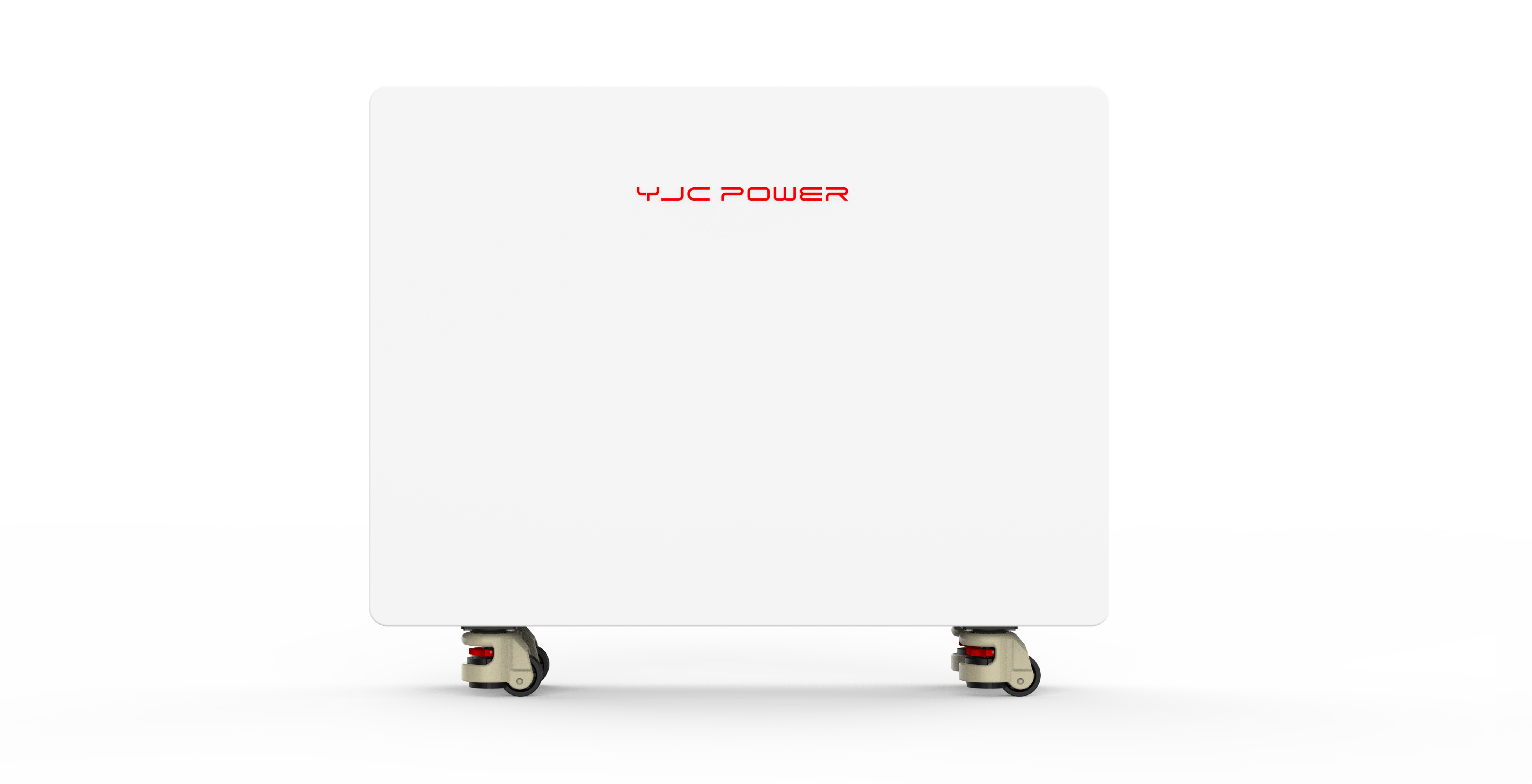

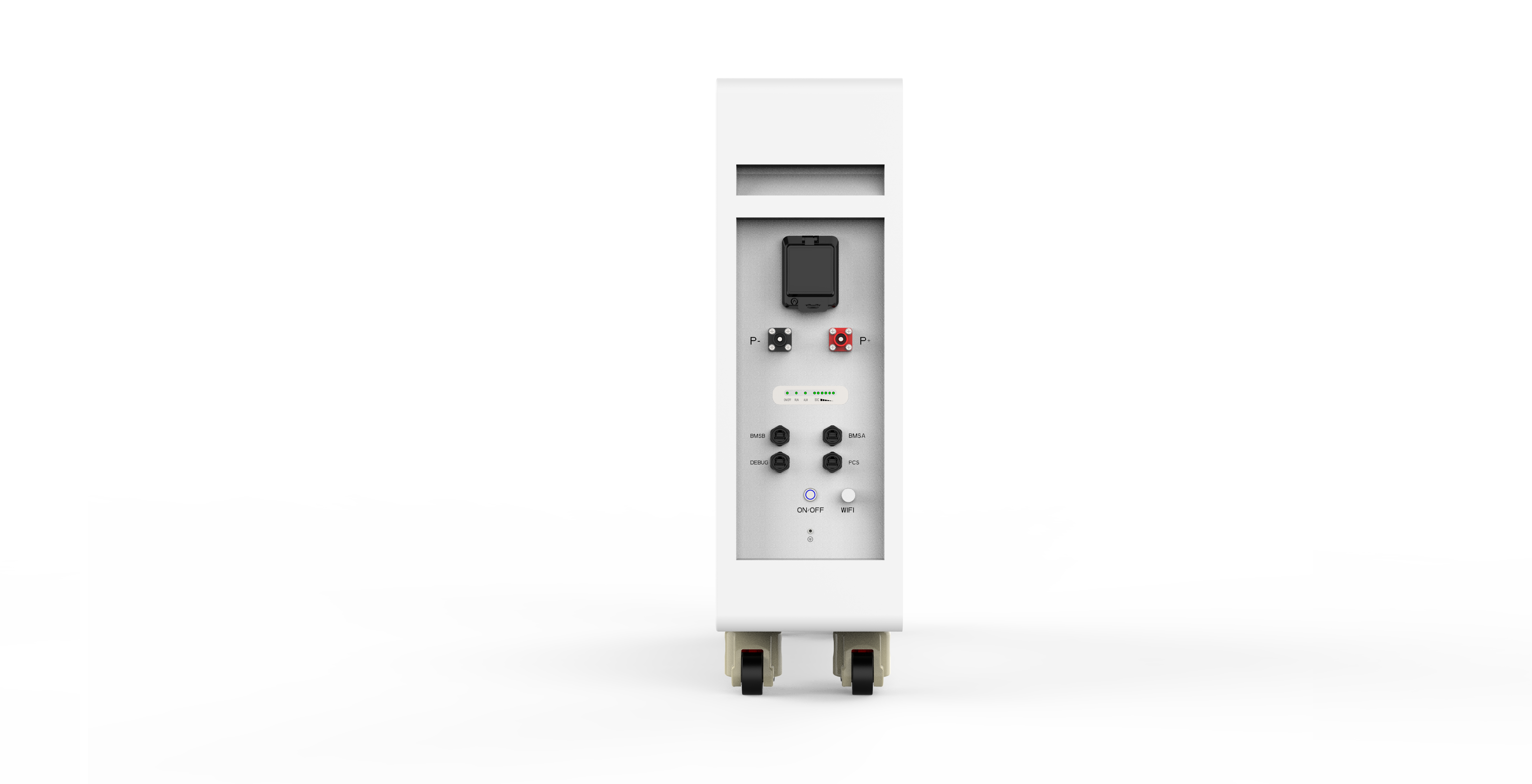

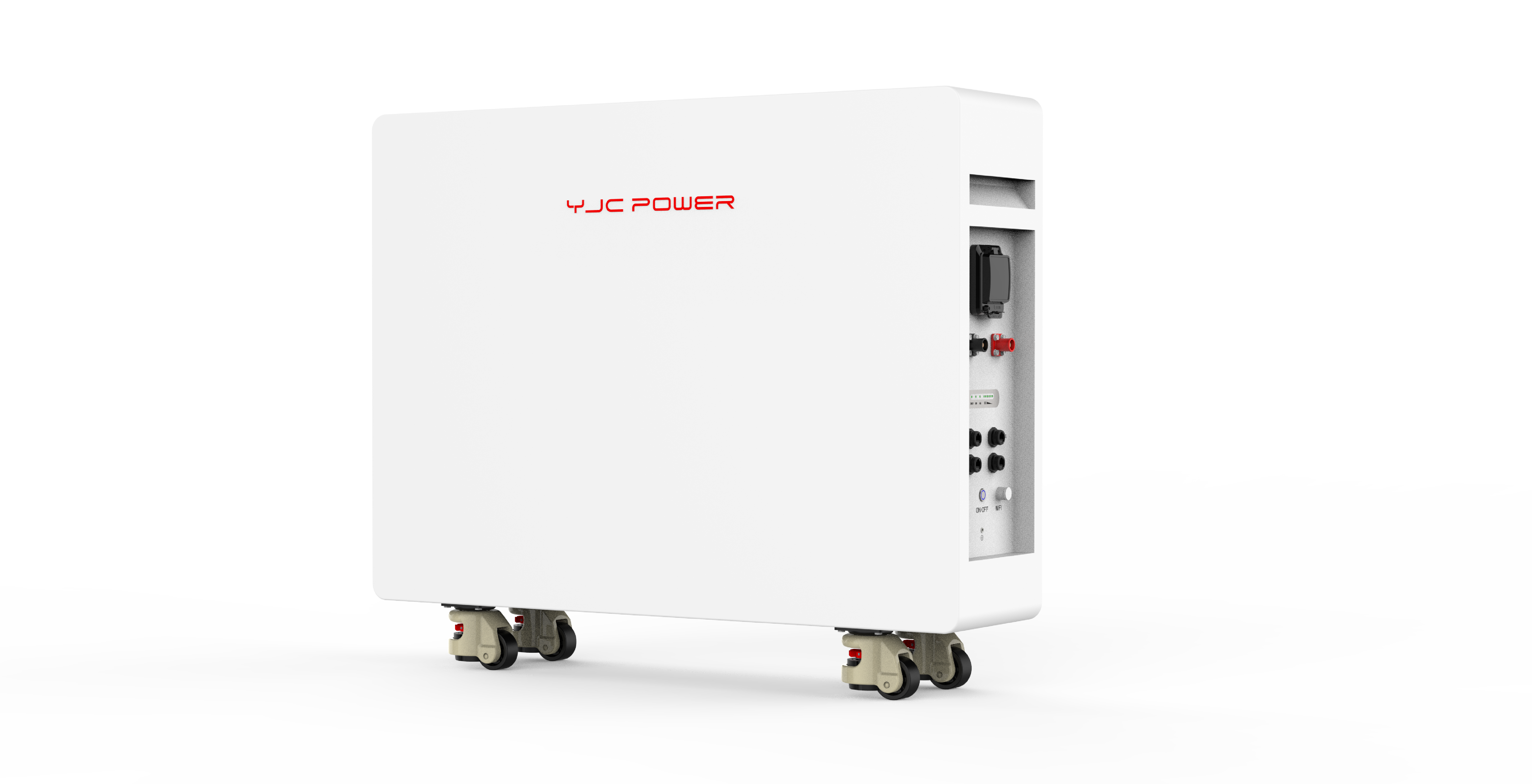

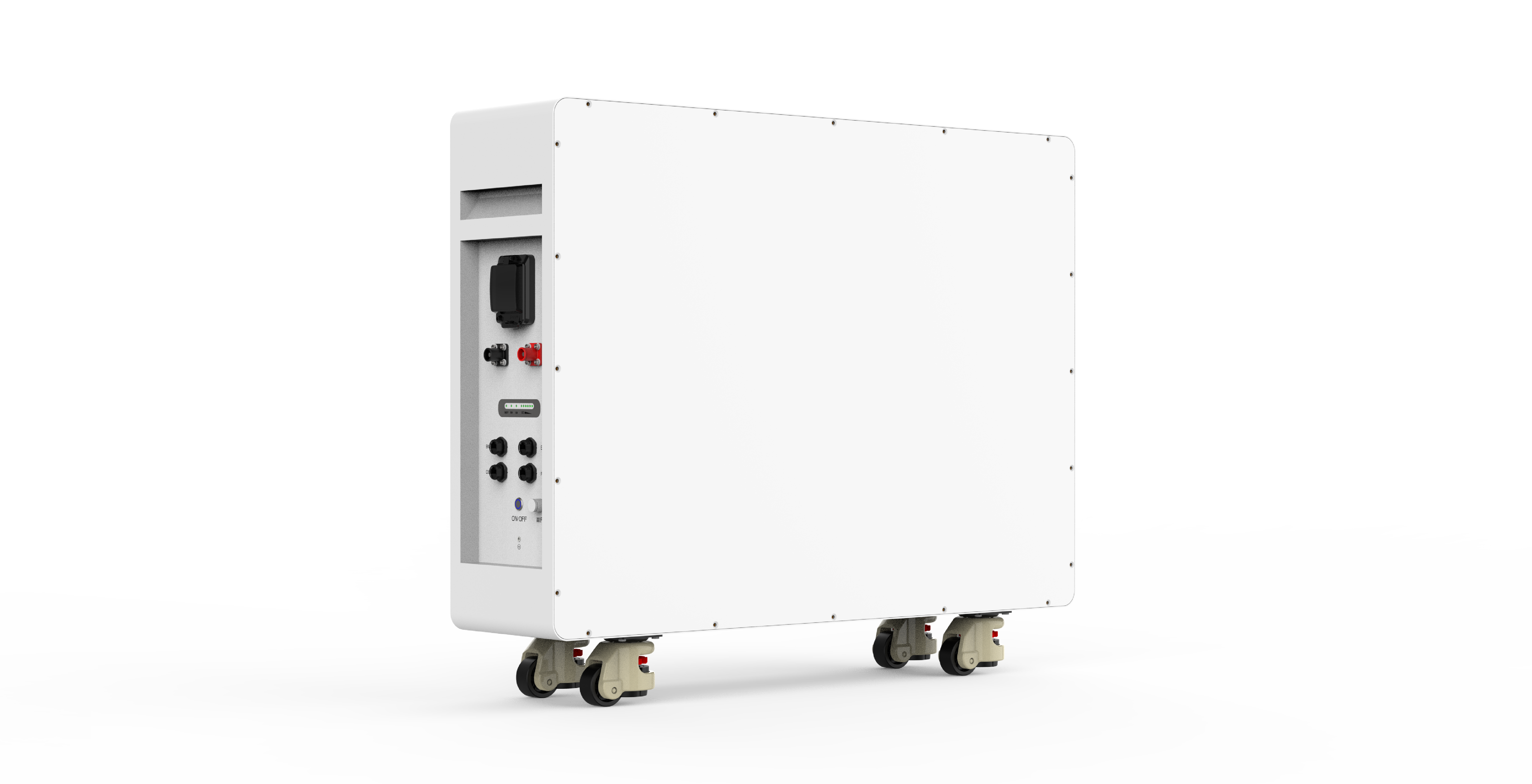

32.15kWh<br/>Low-Voltage Floor-Standing Wheeled Energy Storage Battery

32.15kWh
Low-Voltage Floor-Standing Wheeled Energy Storage Battery

YJC-HES-L-R-32.15kWh

YJC-HES-L-R-32.15kWh

Product Advantages

Large-Capacity Energy Storage

Large-Capacity Energy Storage

Rated voltage 51.2V, capacity 628Ah, usable energy around 32.15kWh. Ideal for long-duration backup power, self-consumption and microgrid applications.
Ultra-Long Service Life

Ultra-Long Service Life

≥8000 charge-discharge cycles at 80% Depth of Discharge (DoD), greatly cutting equipment replacement costs and delivering higher return on investment.
Powerful Continuous Output

Powerful Continuous Output

300A continuous output (approx. 15.36kW) to drive high-power household loads and meet high-current discharge demands.
Multi-Layer Safety Protection via Smart BMS

Multi-Layer Safety Protection via Smart BMS

Built-in battery management system with full-range protection including cell balancing, overvoltage/undervoltage, overcurrent and overtemperature safeguards.
Easy System Integration

Easy System Integration

Equipped with CAN/RS485 communication ports, compatible with most mainstream inverter brands on the market for simple connection and integration.

Product parameters

32.15kWh<br/>Low-Voltage Floor-Standing Wheeled Energy Storage Battery
32.15kWh<br/>Low-Voltage Floor-Standing Wheeled Energy Storage Battery
32.15kWh<br/>Low-Voltage Floor-Standing Wheeled Energy Storage Battery
32.15kWh<br/>Low-Voltage Floor-Standing Wheeled Energy Storage Battery
ModelYJC-HES-L-R-32kWh
Battery TypeLithium Iron Phosphate (LiFePO4)
Rated Battery Energy32.15kWh
Rated Capacity628Ah
Rated Voltage51.2V
Charge Cut-off Voltage58.4V
Discharge Cut-off Voltage40V
Recommended Charge/Discharge Current300A/300A
Max Charge/Discharge Current300A/300A
Weight≈220kg
Dimensions (W × D × H)1000×245×730mm (without casters)
Charging Temperature Range0~50℃
Discharging Temperature Range-20~60℃
Communication InterfaceCAN / RS485
Compatible Inverter BrandsDeye/Growatt/Victron/SE/LuxPower/SRD/SMA/GoodWe/Sofar/Solis/SENERGYINV/MUST/AFORE/Voltronic/SOLAR/Sunways
Cell Cycle Life≥8000 cycles
Certifications & Safety StandardsCE-EMC/IEC62619/UN38.3
