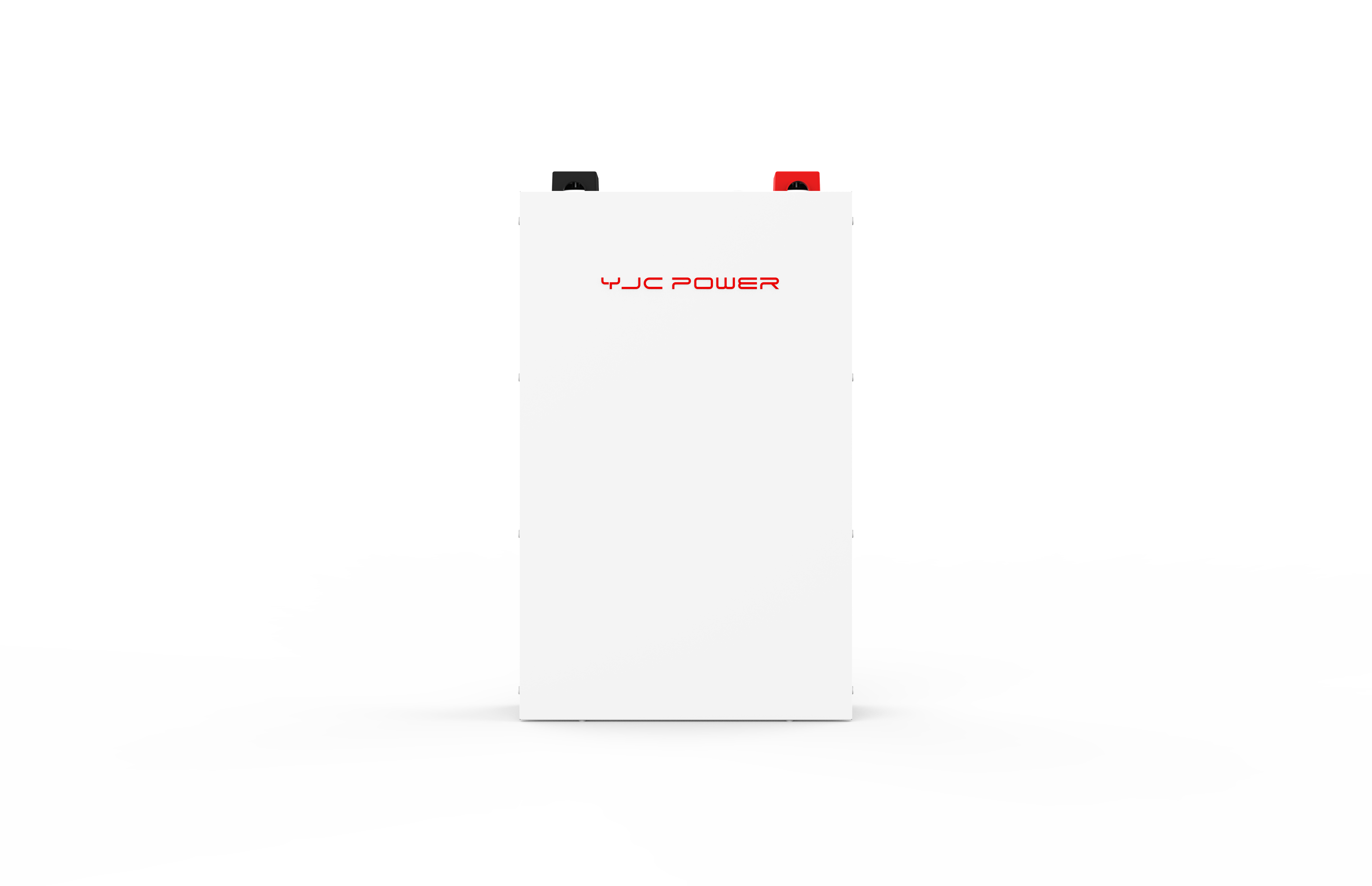

5.12kWh

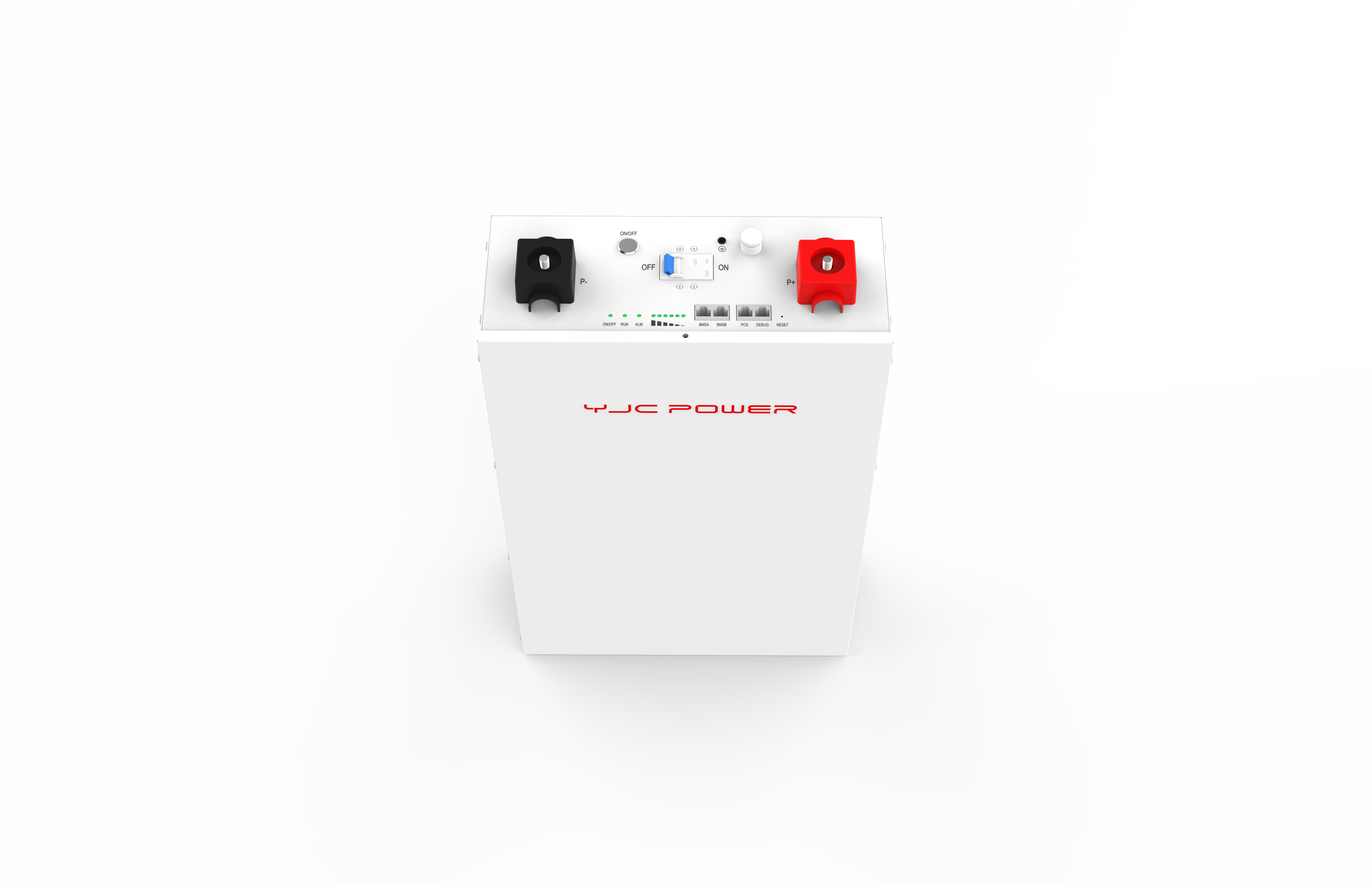

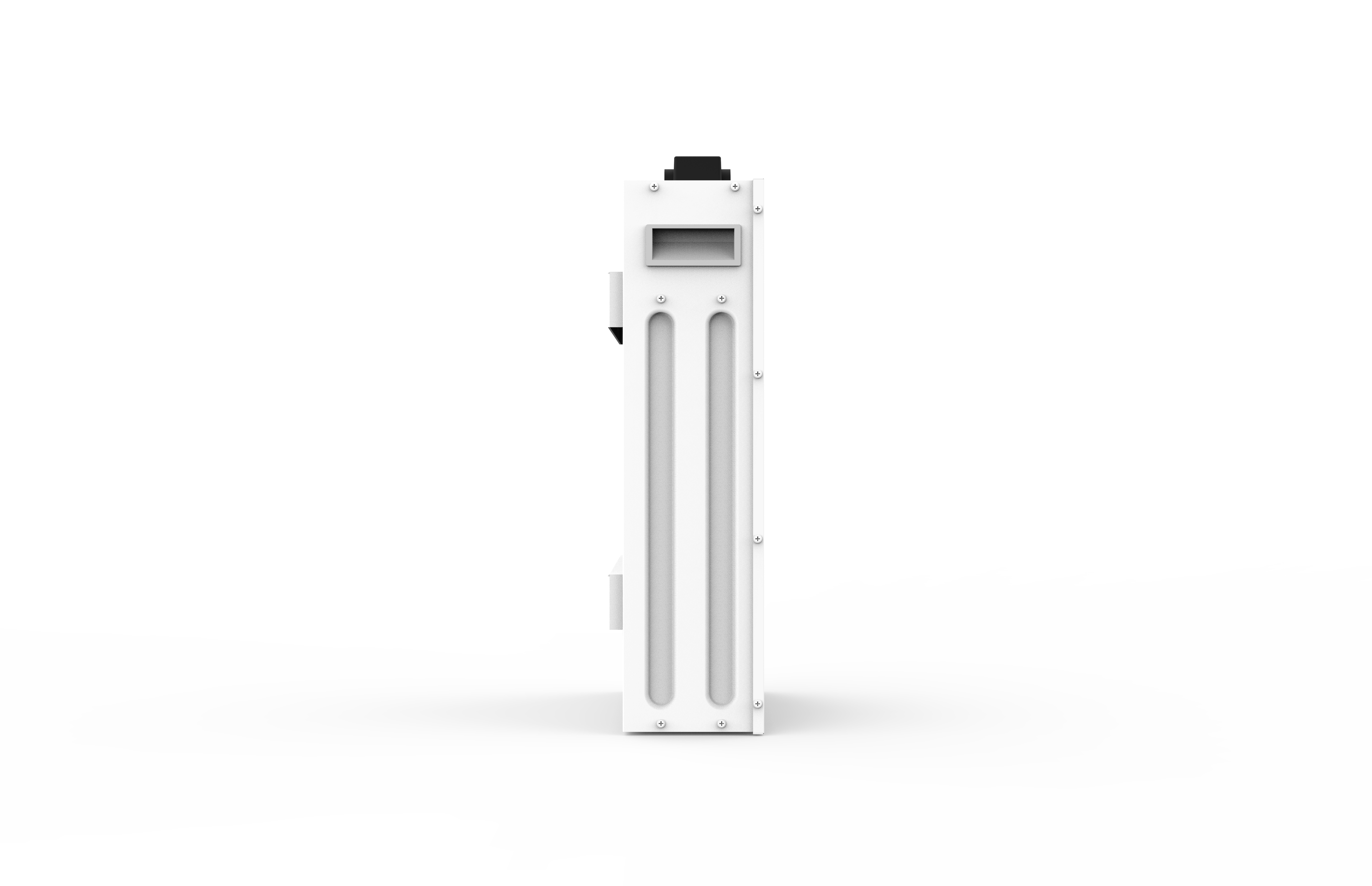

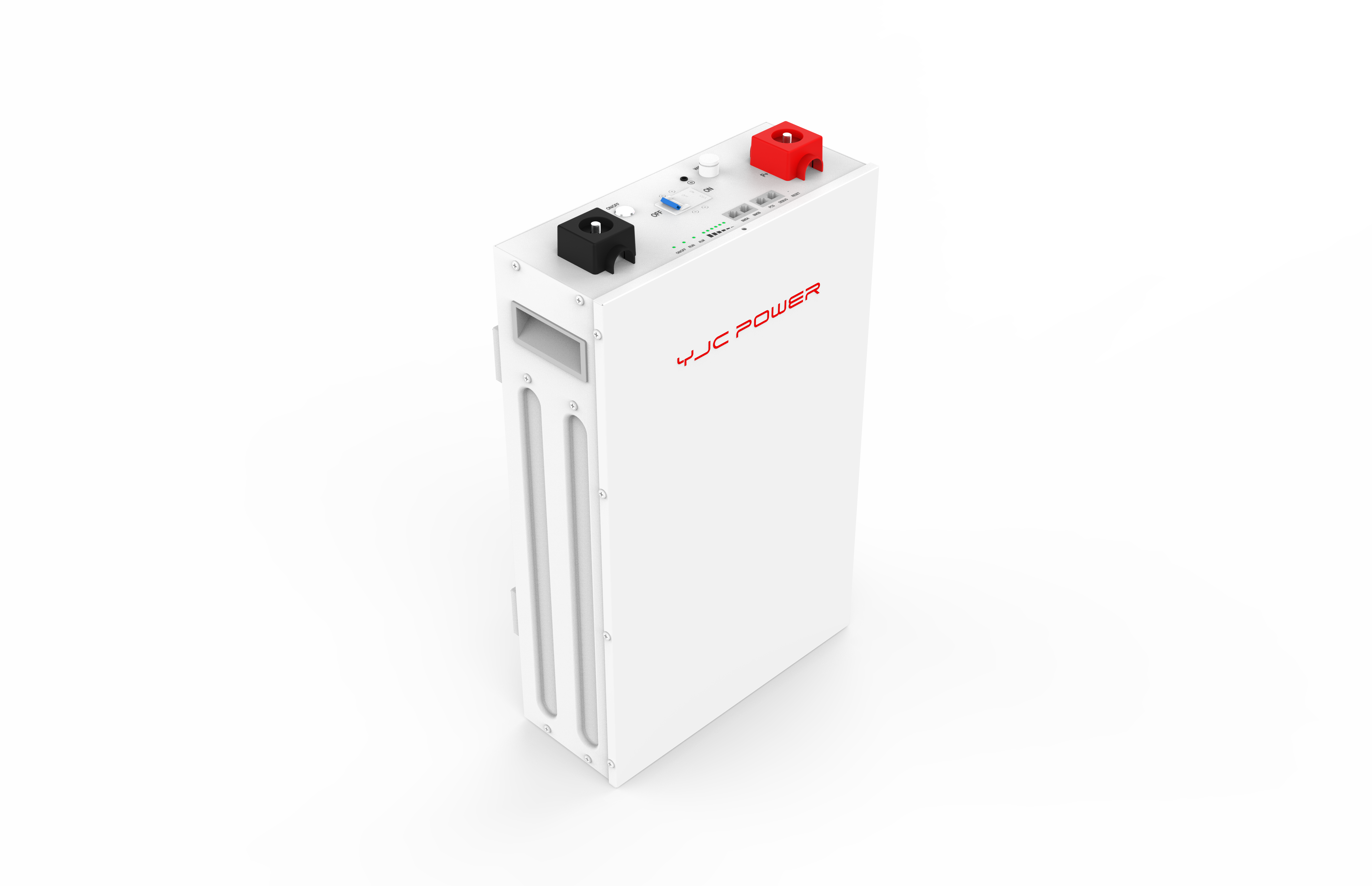

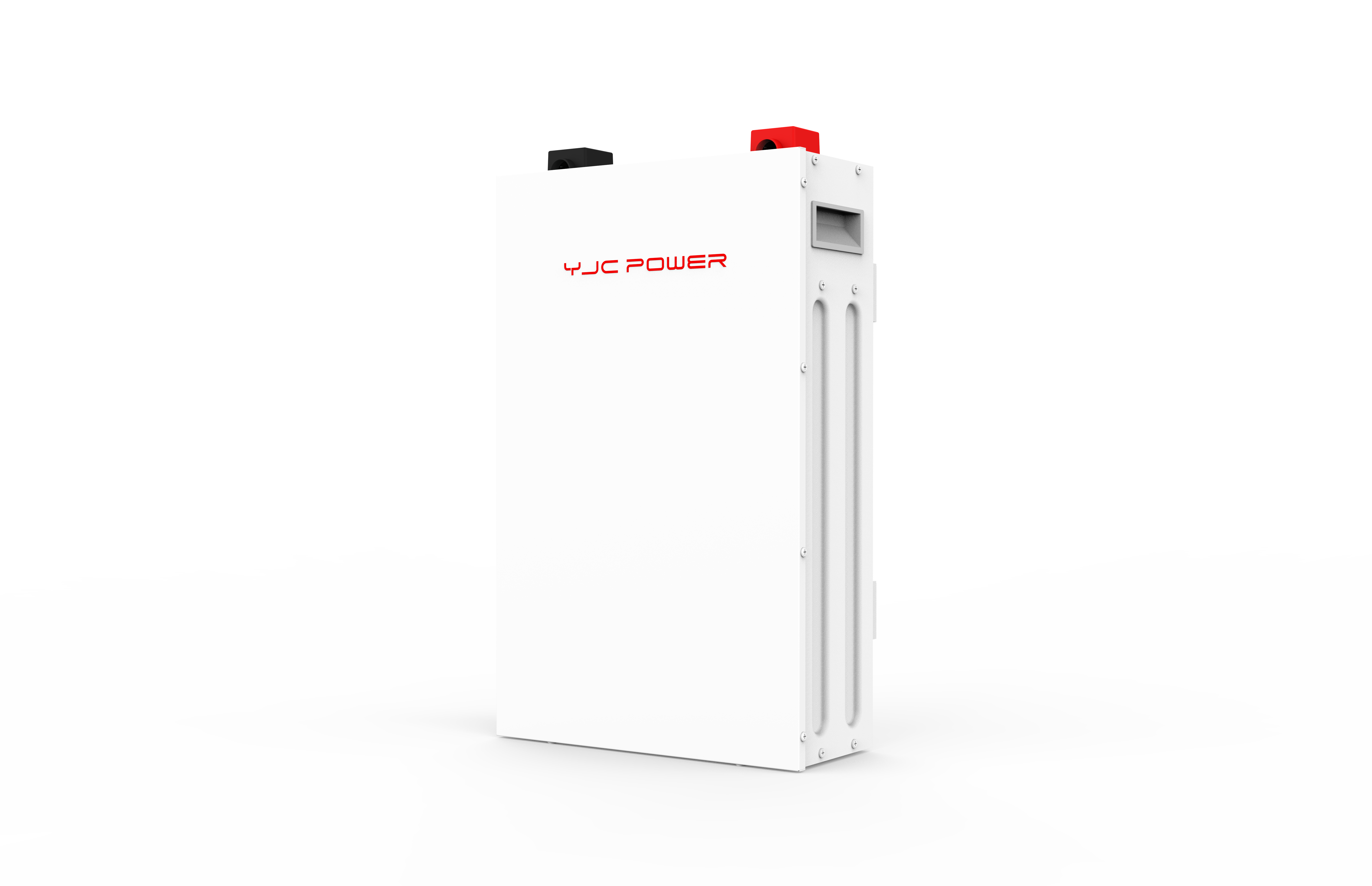

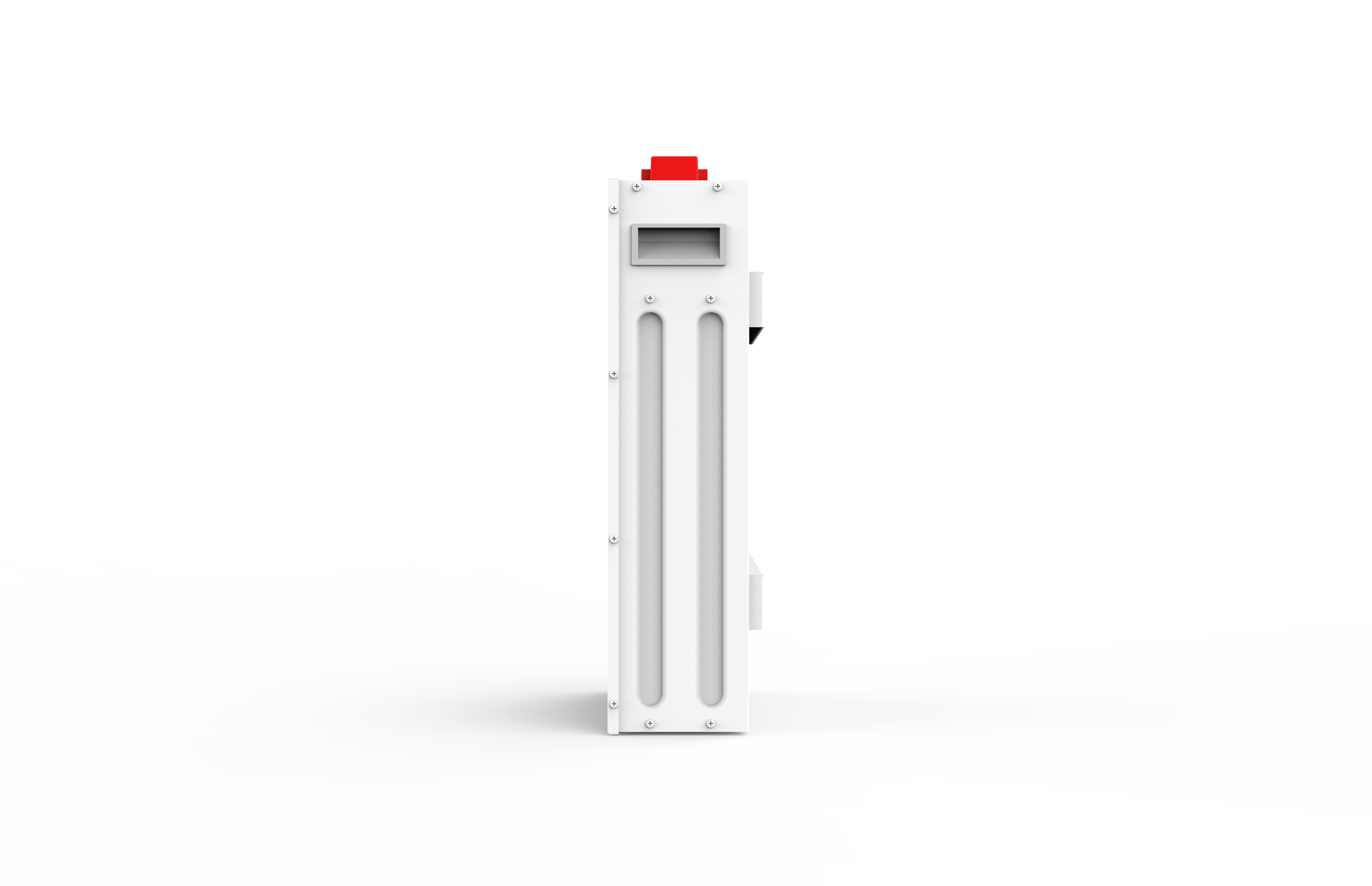

Low‑Voltage Wall‑Mounted LiFePO₄ Energy Storage Battery
YJC‑LV5
5.12kWh
YJC‑LV5
Product Advantages
5.12kWh Large‑capacity Low‑voltage Storage
5.12kWh usable capacity with safe 51.2V low‑voltage design, ideal for residential backup power & daily PV energy storage.
Ultra‑long Cycle Life
≥6000 charge‑discharge cycles, low capacity fading for long‑term use and lower replacement cost.
Powerful Continuous Charge & Discharge
Max 100A continuous charge/discharge current, 95% depth of discharge to maximize usable energy.

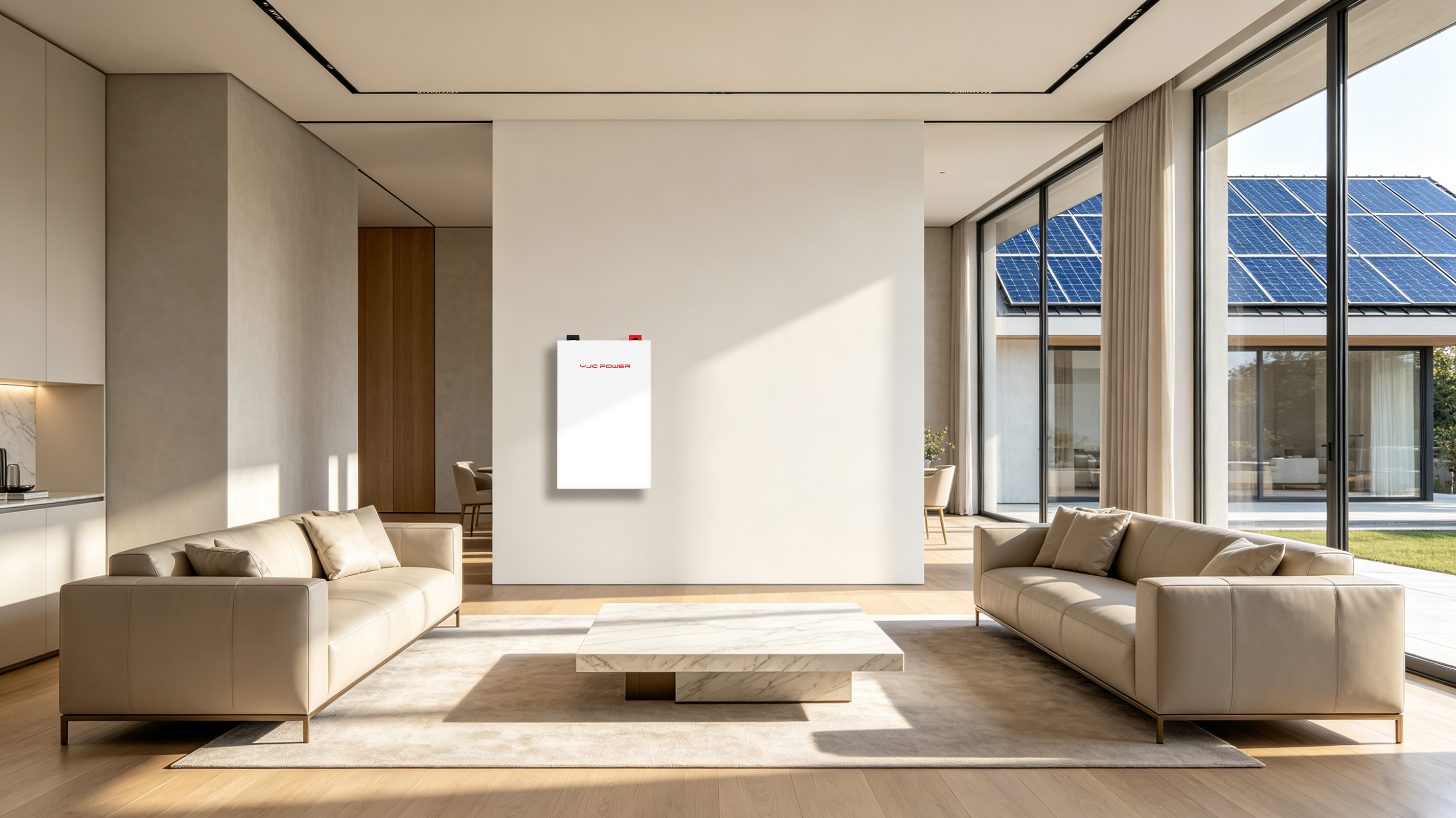

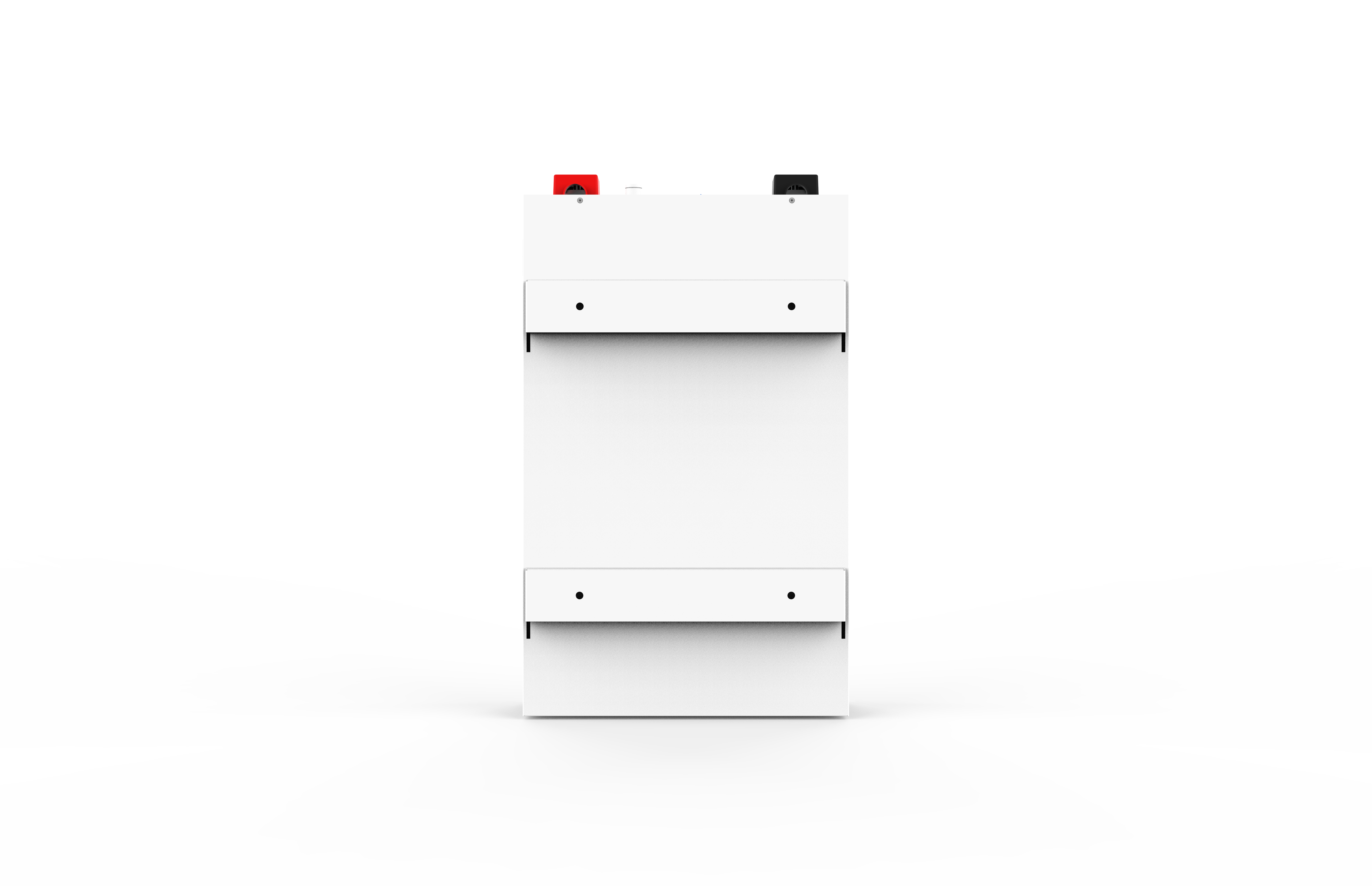

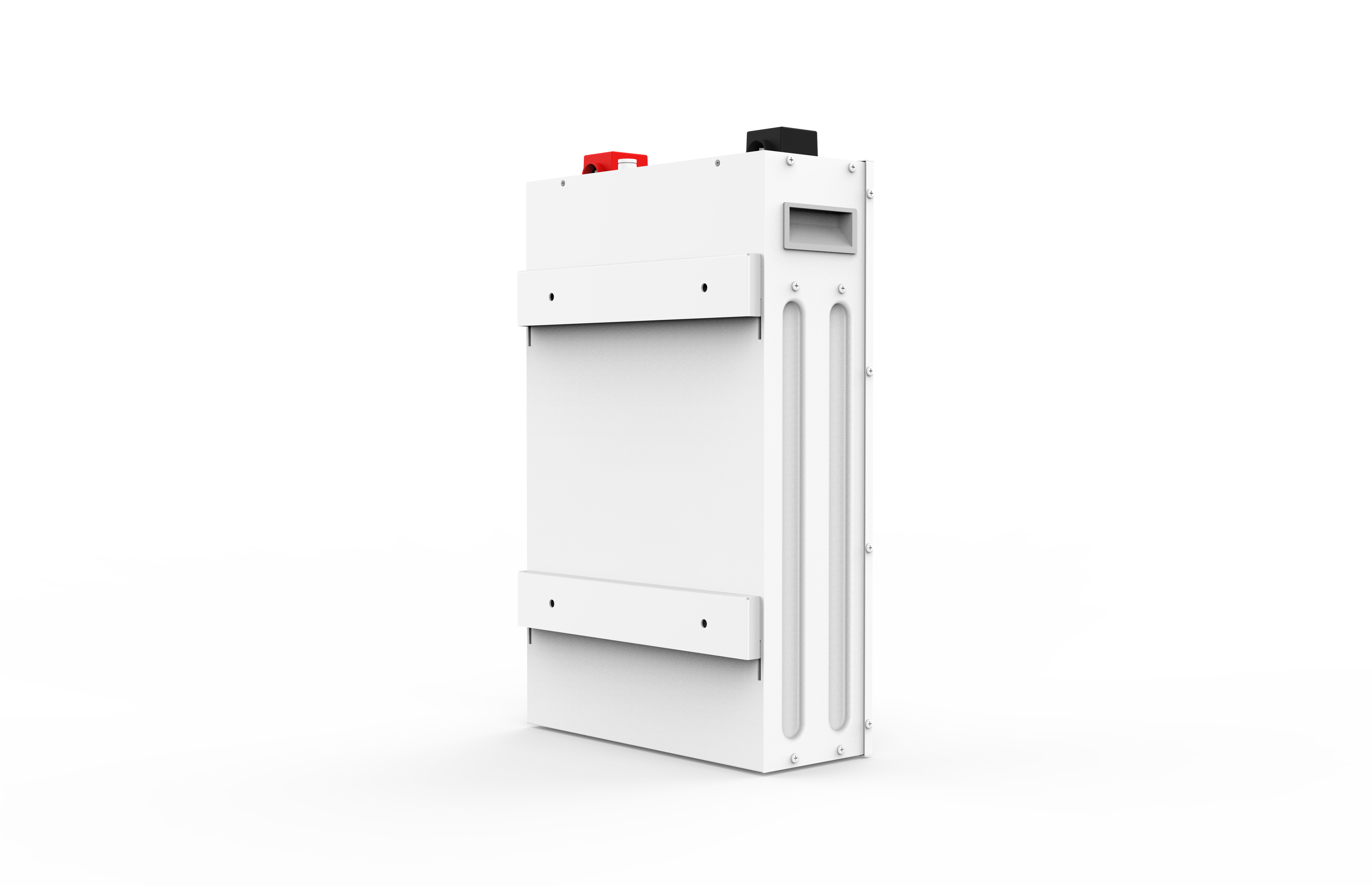

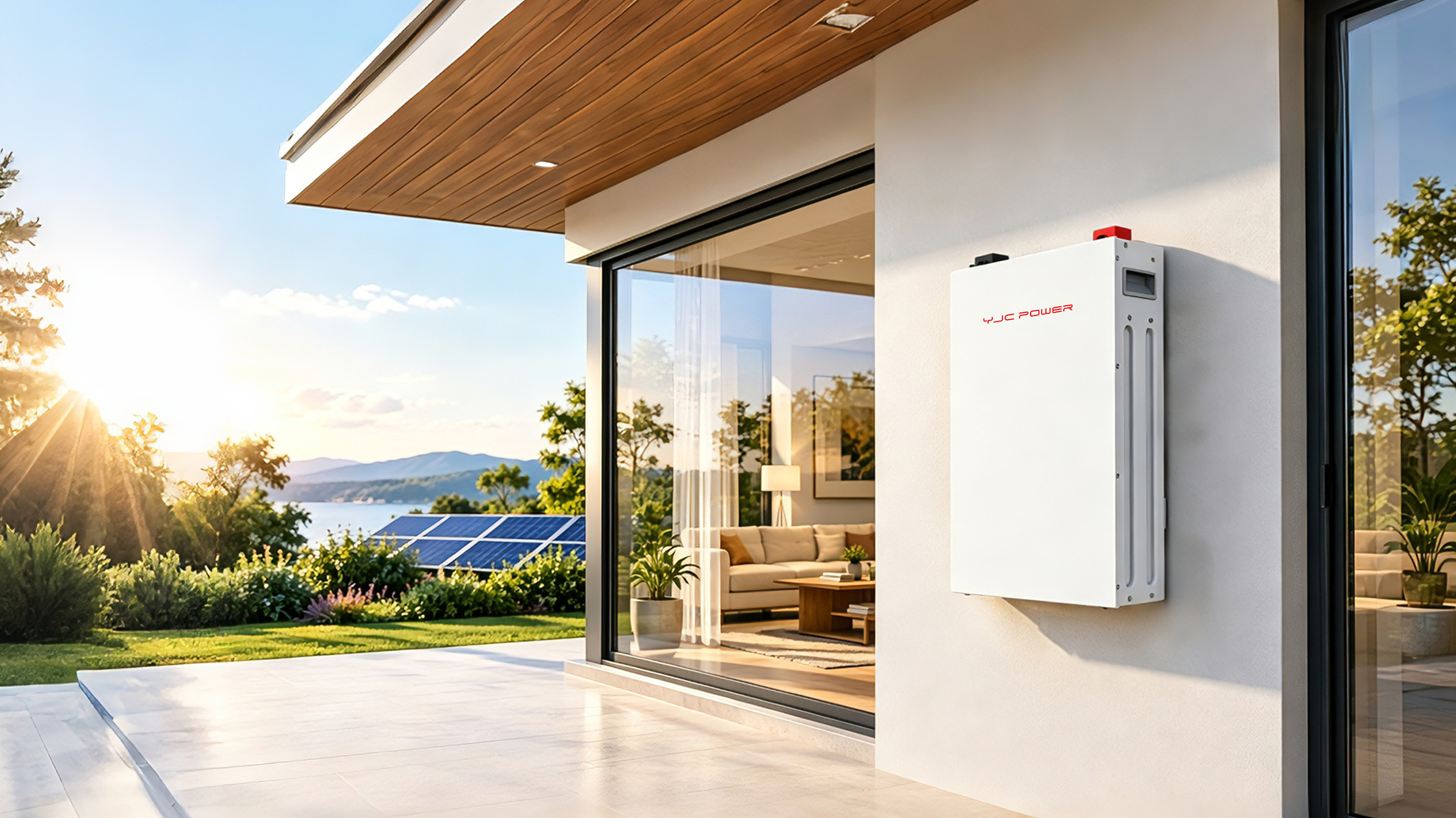

Space‑saving Wall‑mounted Design
Compact wall‑mounted size 346×550×140mm, light‑weight 40kg cabinet to save floor space.
Flexible Communication Ports
Dual CAN / RS485 communication ports, compatible with most mainstream hybrid inverters.
Wide Operating Temperature & Reliable Safety
Wide temperature range: 0~50℃(charge), ‑20~60℃(discharge). Certified with UN38.3 for safe transportation & operation.
Product parameters
| Model | YJC‑LV5 |
| Battery Type | Lithium Iron Phosphate (LiFePO4) |
| Nominal Energy | 5.12kWh |
| Nominal Capacity | 100Ah |
| Nominal Voltage | 51.2V |
| Charge Cut‑off Voltage | 58.4V |
| Discharge Cut‑off Voltage | 40V |
| Recommended Charge / Discharge Current | 50A/50A |
| Maximum Continuous Charge / Discharge Current | 100A/100A |
| Depth Of Discharge | 95% |
| Net Weight | 40kg±2KG |
| Dimensions (W × H × D) | 346*550*140mm |
| Charge Temperature Range | 0~50° C |
| Discharge Temperature Range | -20~60° C |
| Communication Interfaces | CAN / RS485 |
| Compatible Inverters | Deye/Growatt/Victron/SE/LuxPower/SRD/SMA/GoodWe/Sofar/Solis/SENERGYINV/MUST/AFORE/Voltronic/SOLAR/Sunways |
| Cycle Life | ≥6000 Cycles |
| IP Rating | IP20 |
| Certifications & Safety Standards | UN38.3 |
| Product Version | SE |
Product parameters are for reference only, subject to confirmation by our sales team.
