25.6kWh

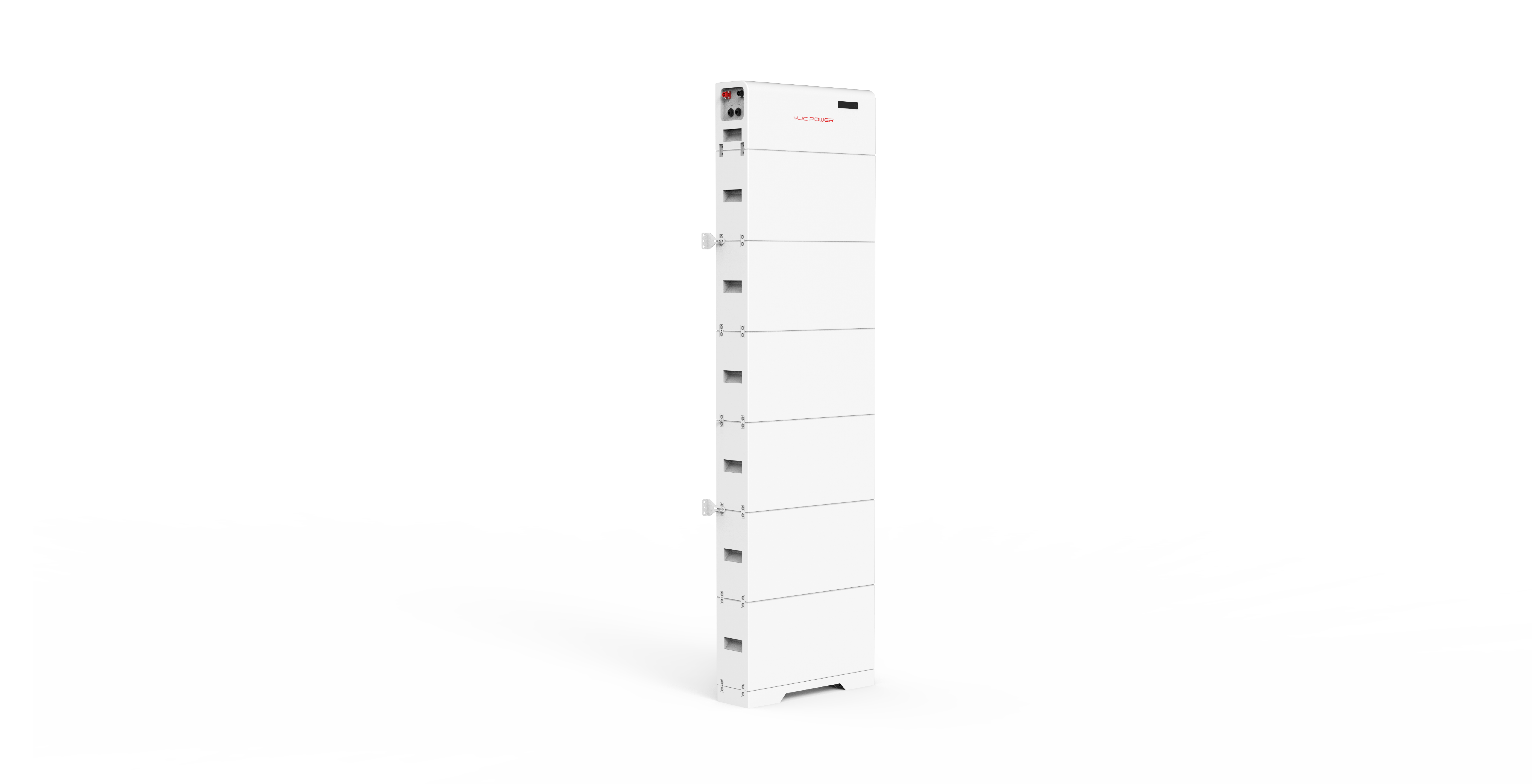

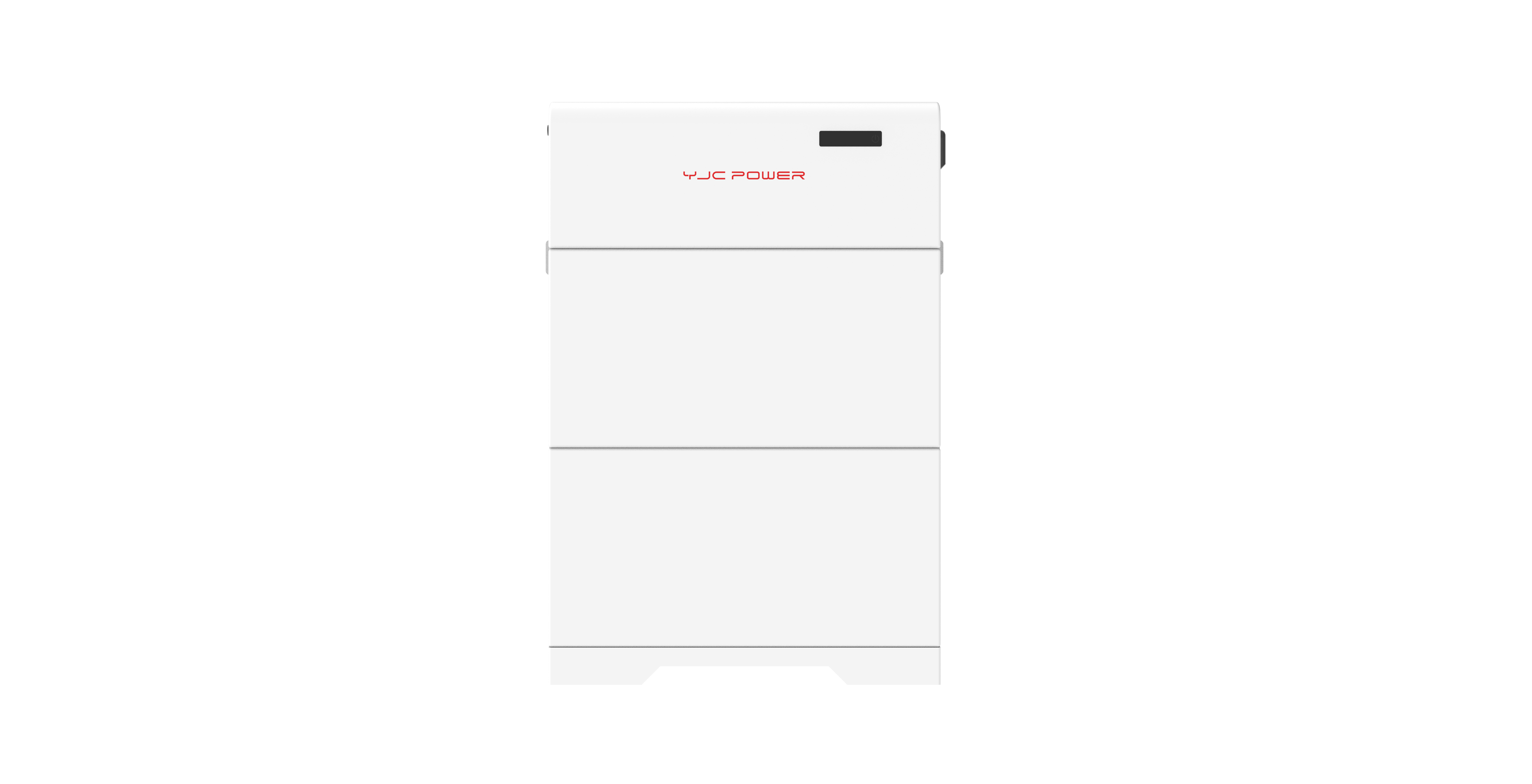

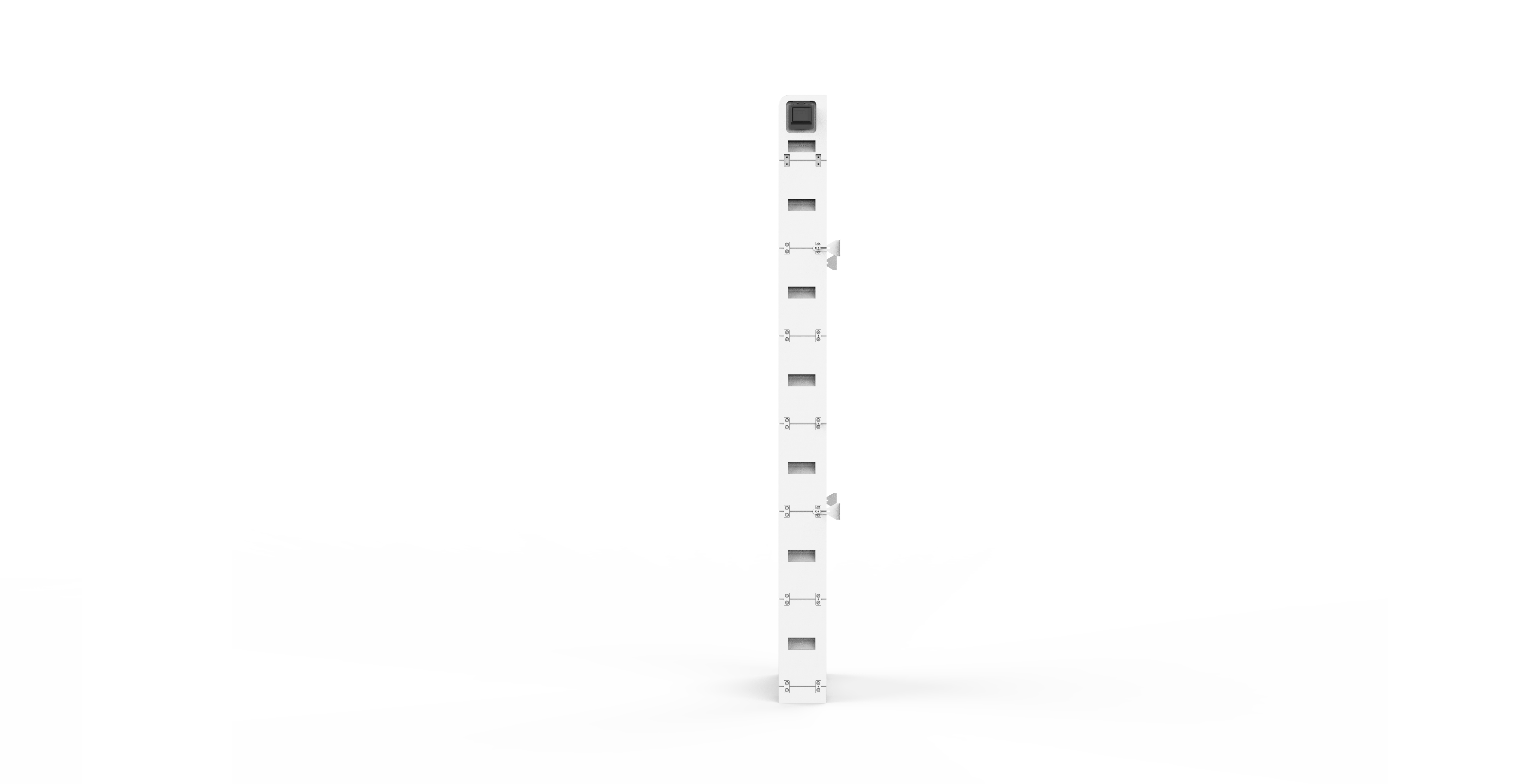

High-Voltage Stackable Energy Storage Battery
YJC-HES-H-S-10.24~25.6kWh
25.6kWh
YJC-HES-H-S-10.24~25.6kWh
Product Advantages

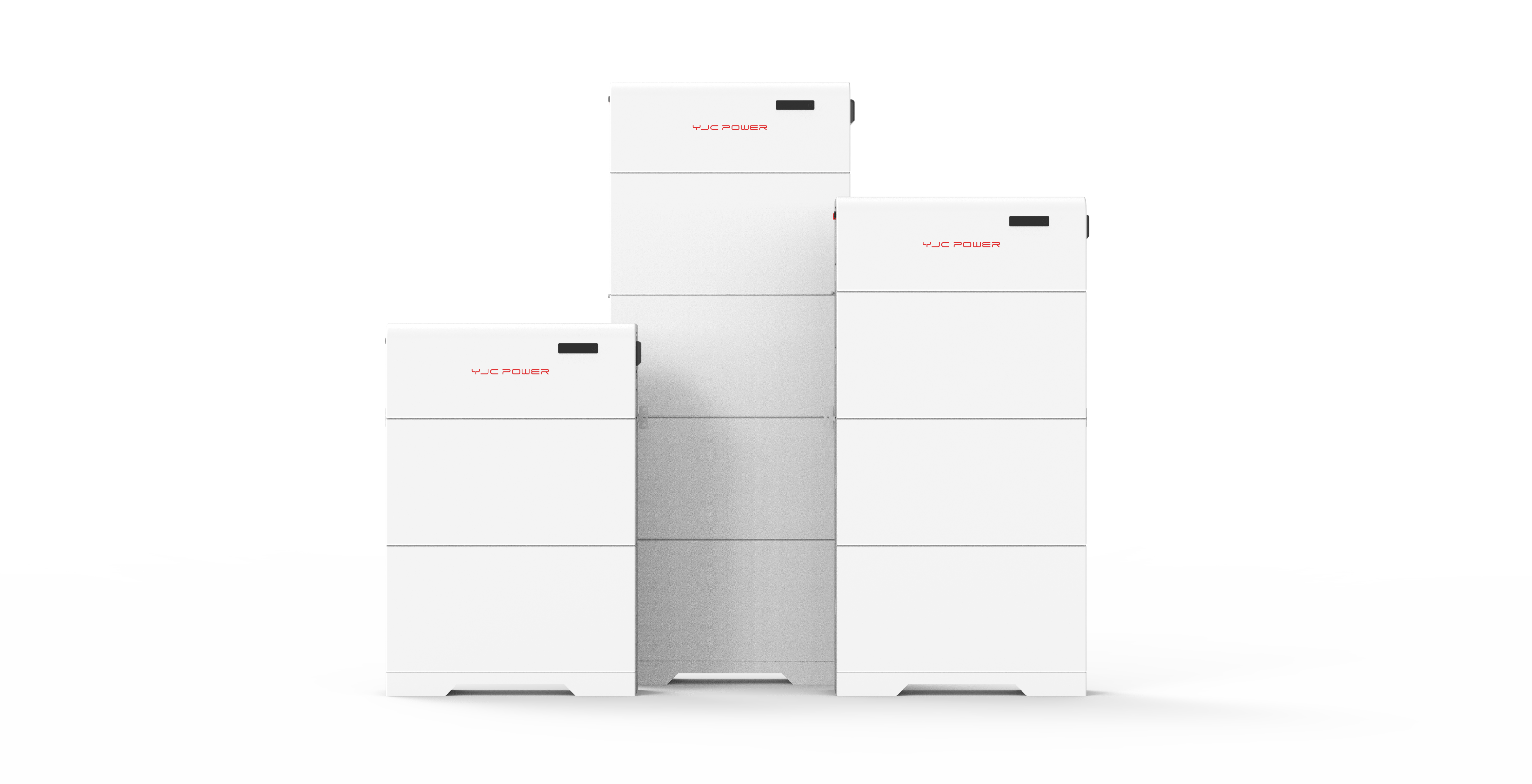

Modular Stack Design for Flexible Capacity Expansion
Up to 5 units can be connected in parallel, with total capacity expandable from 5.12 kWh to 25.6 kWh to meet diversified energy storage application demands.
Factory Cell Active Balancing Technology
Effectively reduces voltage difference between cells, optimizes overall battery pack performance and extends the whole unit service life.
Strong Continuous Charge & Discharge Capacity with Ample Peak Power
Rated continuous charge/discharge current is 50A, and short-term peak current can reach 100A for 5 seconds, stably supporting instantaneous startup of high-power loads.
Wide Compatibility with Mainstream Inverters
Equipped with dual communication protocols CAN and RS485, compatible with mainstream inverter brands including SMA, Deye, GoodWe and Growatt for easy system integration.
Ultra-Long Cycle Life with Intelligent Remote Monitoring & O&M
Cell cycle life ≥6000 times; complete set of safety certifications including UL 9540A, UL1973 and CE EMC; supports remote fault diagnosis and real-time operating data viewing.
Product parameters
| Model | YJC-HES-H-S-10.24kWh | YJC-HES-H-S-15.36kWh | YJC-HES-H-S-20.48kWh |
| Quantity | 2 | 3 | 4 |
| Nominal Voltage | 204.8V | 307.2V | 409.6V |
| Capacity | 50Ah | ||
| Recommended Charge/Discharge Current | 25A/25A | ||
| Max Charge/Discharge Current | 50A/50A | ||
| Peak Charge/Discharge Current | 100A(5S) | ||
| System Energy | 10.24kWh | 15.36kWh | 20.48kWh |
| Communication Protocols | |||
| Communication Interfaces | CAN / RS485 | ||
| Compatible Inverter Brands | SMA/Victron/Solis/Deye/Goodwe/Sofar/Growatt/Kstar/SolaX/Megarevo/Afore/Sunways/SAJ | ||
| General Specifications | |||
| Dimensions | 630×940×175mm | 630×1260×175mm | 630×1580×175mm |
| Weight | 110kg | 160kg | 210kg |
| Installation Type | Floor-standing | ||
| Charging Temperature Range | 0~50℃ | ||
| Discharging Temperature Range | -20~60℃ | ||
| Cell Cycle Life | ≥6000 cycles | ||
| Certifications & Safety Standards | UL 9540A/UL1973/CE-EMC/IEC62619/UN38.3 | ||
