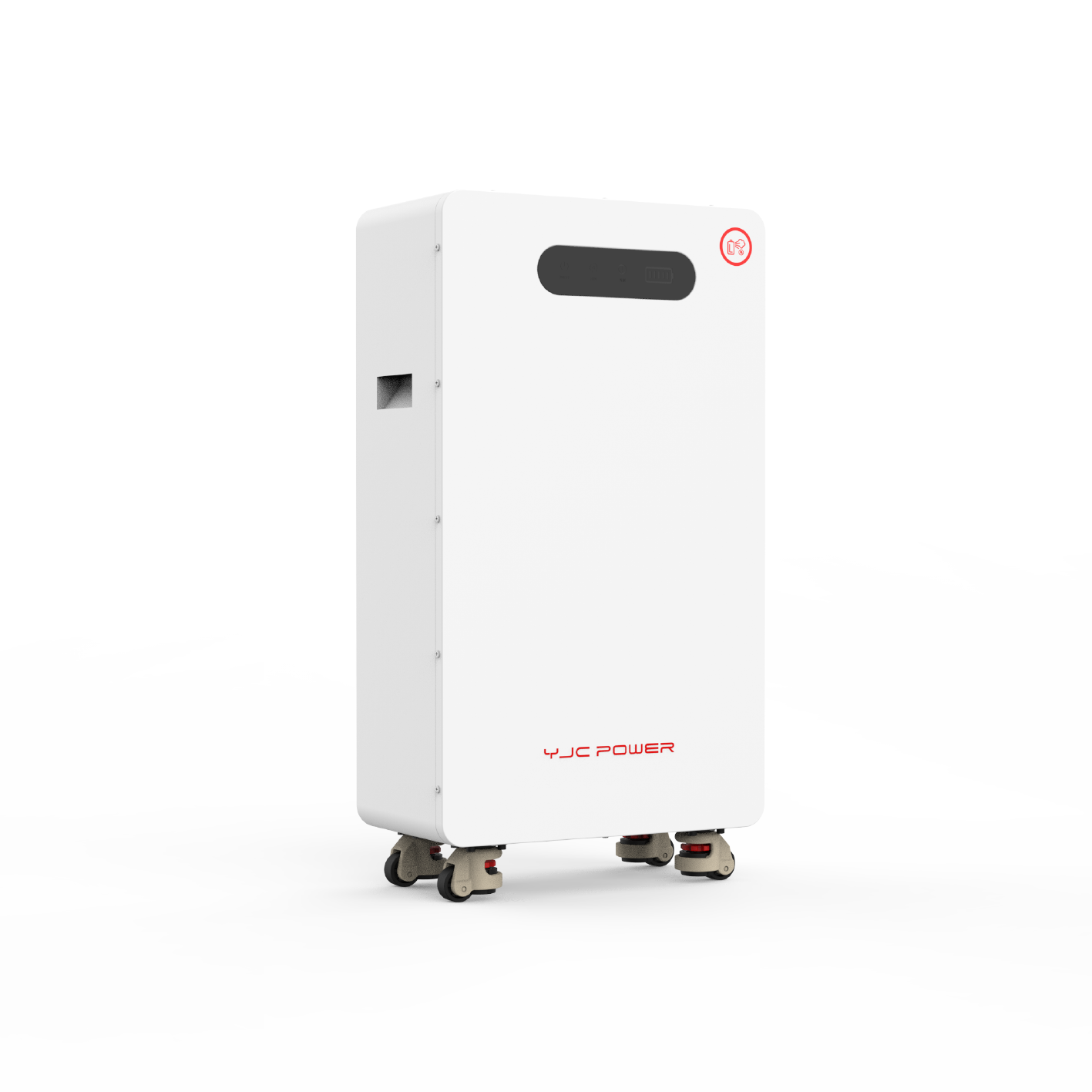

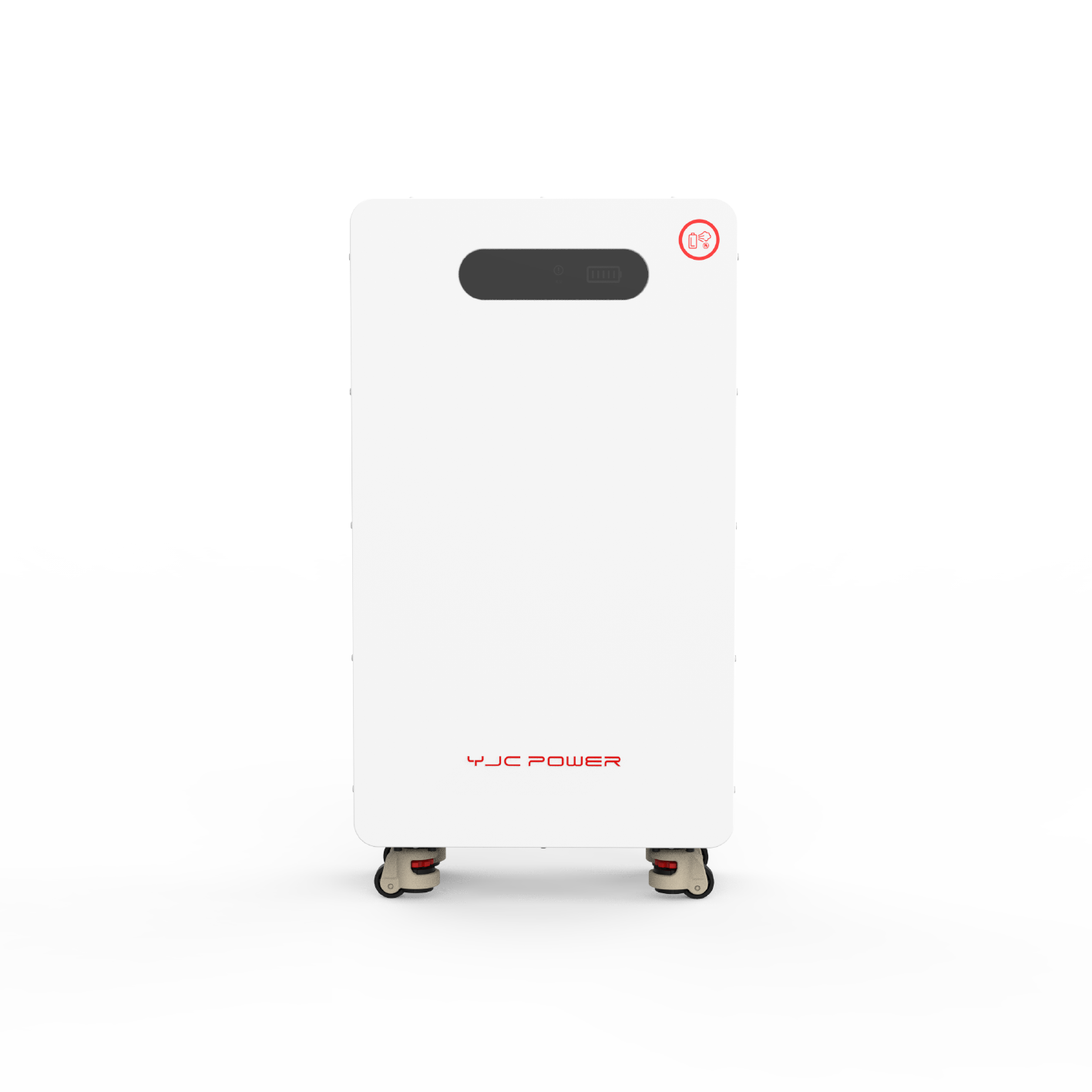

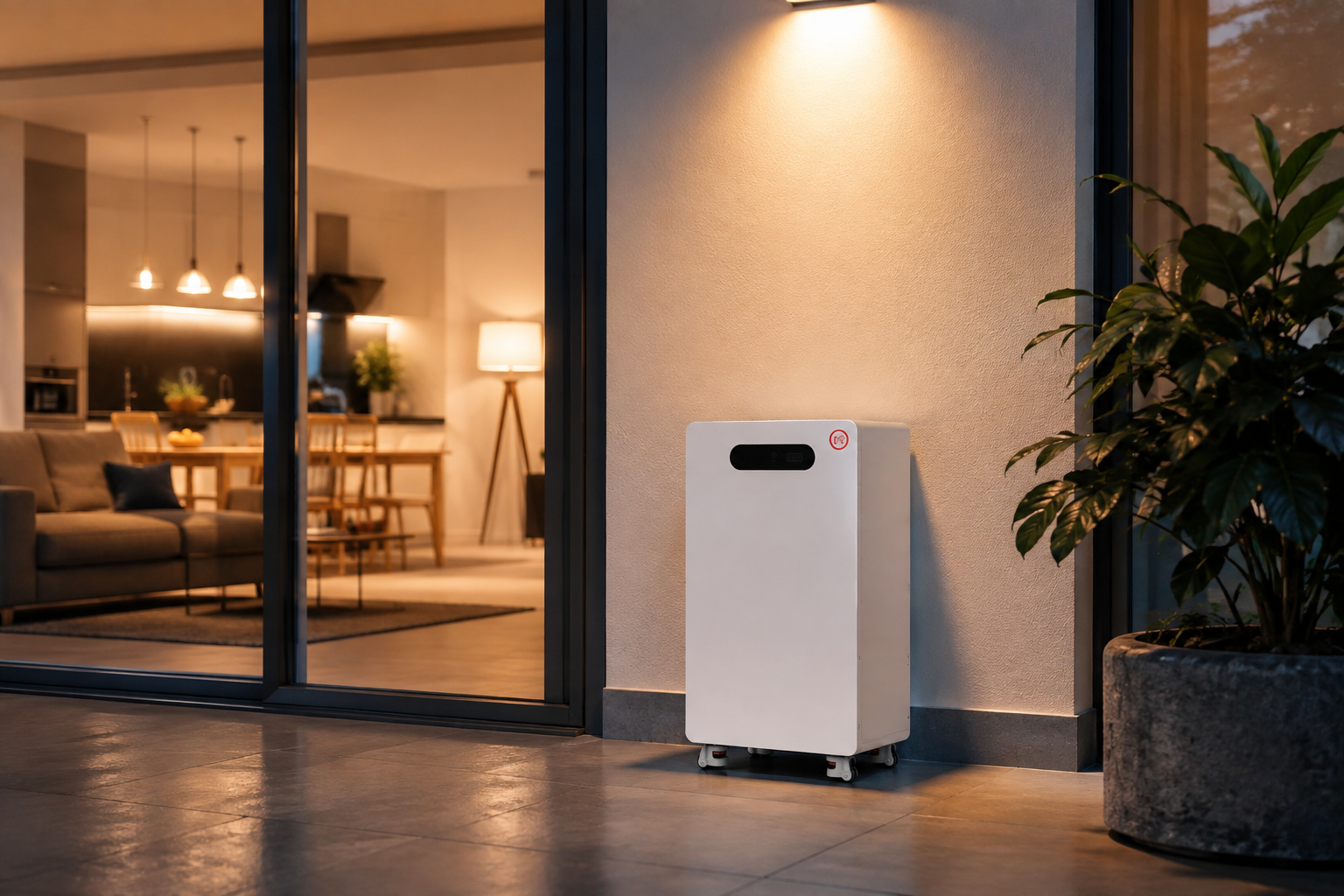

16.08kWh<br/>low‑voltage ground‑caster energy storage battery

16.08kWh
low‑voltage ground‑caster energy storage battery

YJC‑LV16

YJC‑LV16

Maximum Number of Combinations / Total Capacity: ×15 (241.2 kWh)

Product Advantages

MASSIVE ENERGY, FLEXIBLE EXPANSION

MASSIVE ENERGY, FLEXIBLE EXPANSION

16 kWh per unit, scalable up to 241.2 kWh by paralleling up to 15 units for higher‑power requirements.
COMPACT & MOBILE DESIGN

COMPACT & MOBILE DESIGN

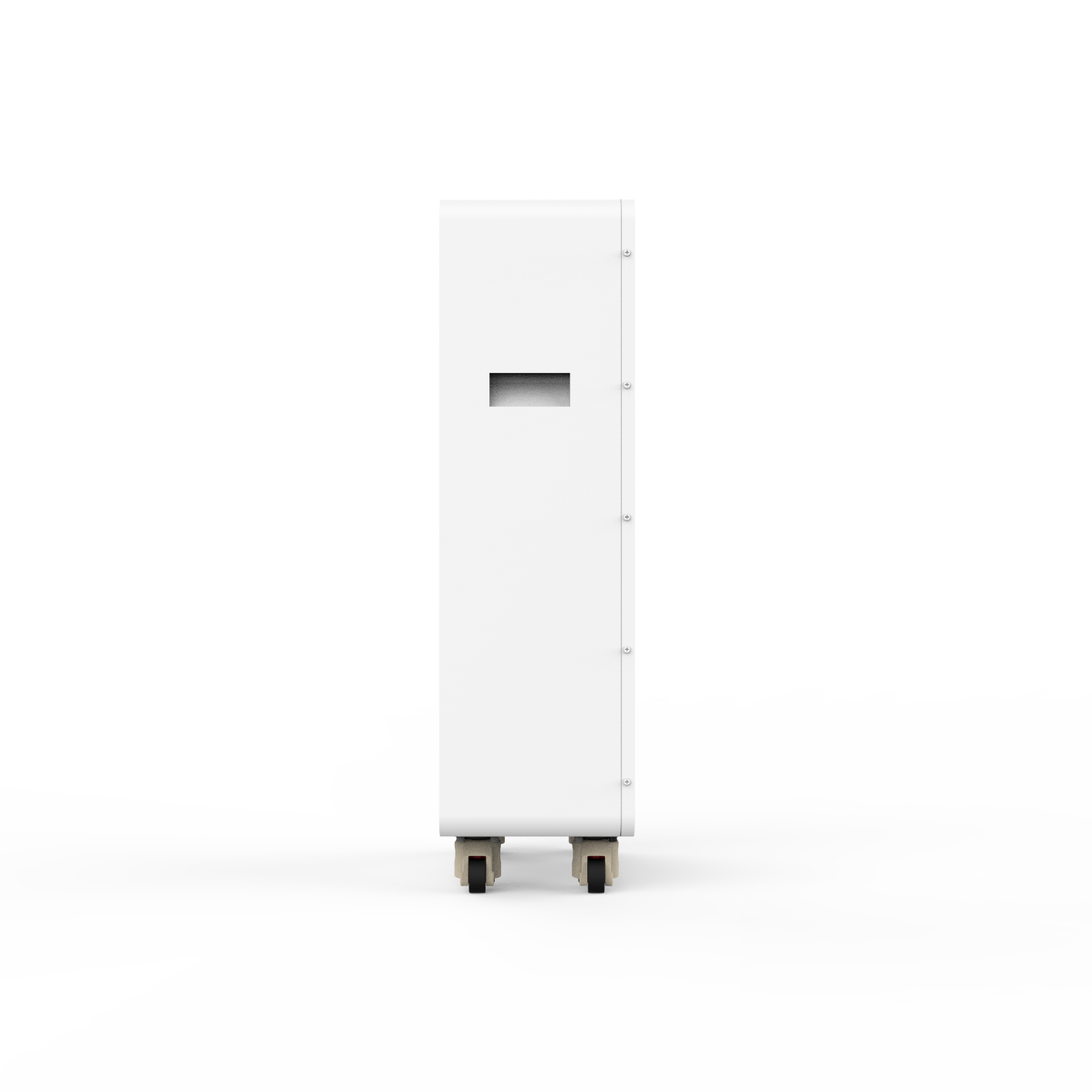

Rugged wheeled cabinet for easy relocation — no heavy lifting required, no complex installation.
BUILT FOR SAFETY & LONGEVITY

BUILT FOR SAFETY & LONGEVITY

Grade‑A LiFePO₄ cells with 8000+ cycles deliver high thermal stability: no fire, no explosion.
SMART PROTECTION, WORRY‑FREE OPERATION

SMART PROTECTION, WORRY‑FREE OPERATION

200 A intelligent BMS fitted with dual fuses and a circuit breaker for real‑time protection.
ALL‑WEATHER RELIABILITY

ALL‑WEATHER RELIABILITY

IP65‑rated enclosure; operating temperature range: ‑20 ℃ ~ 60 ℃, for reliable indoor and outdoor deployment.
WIDE APPLICATION VERSATILITY

WIDE APPLICATION VERSATILITY

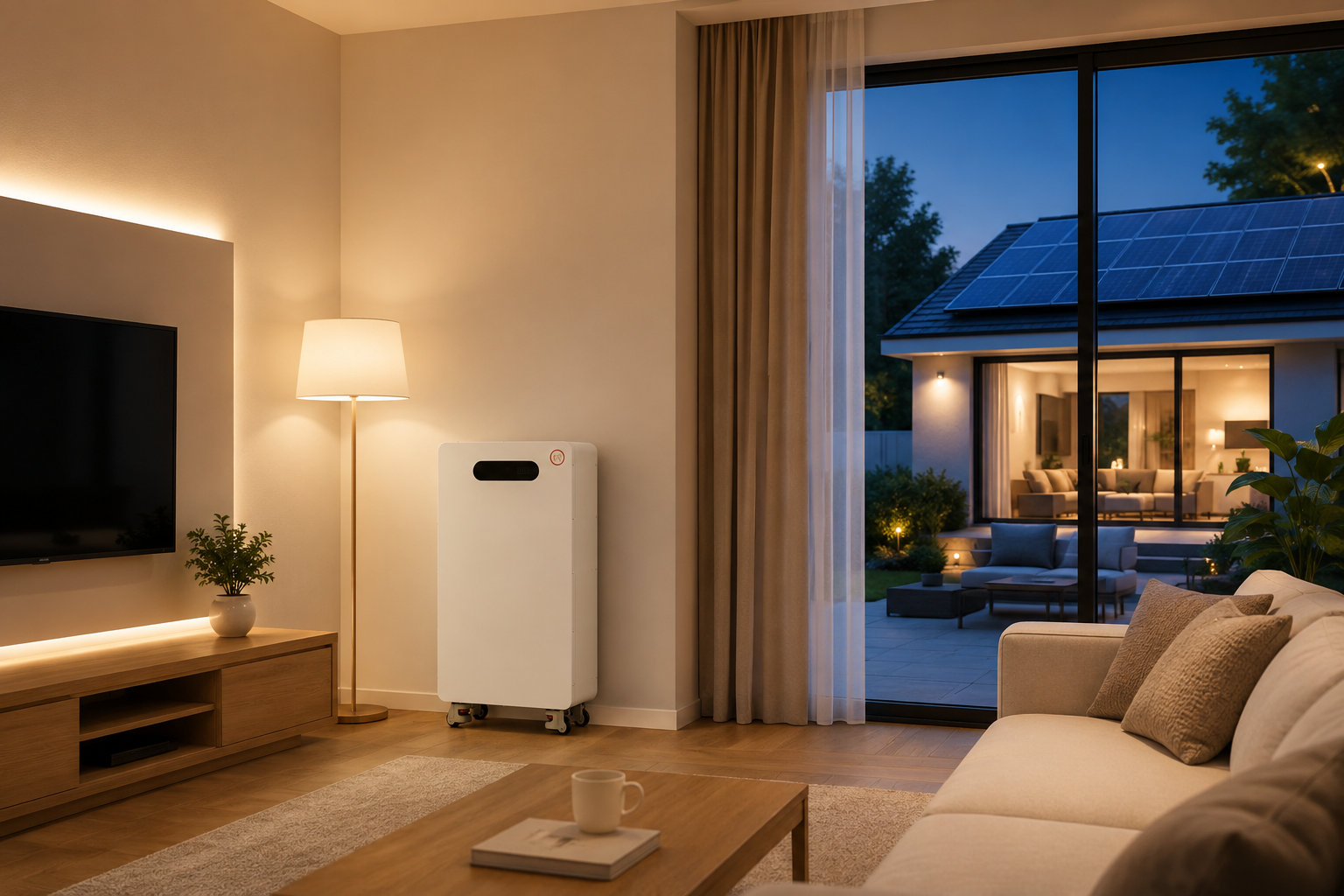

Perfect for shops, factories, schools, clinics and off‑grid residences — clean, silent power available anytime.
SMART COMMUNICATION PORTS

SMART COMMUNICATION PORTS

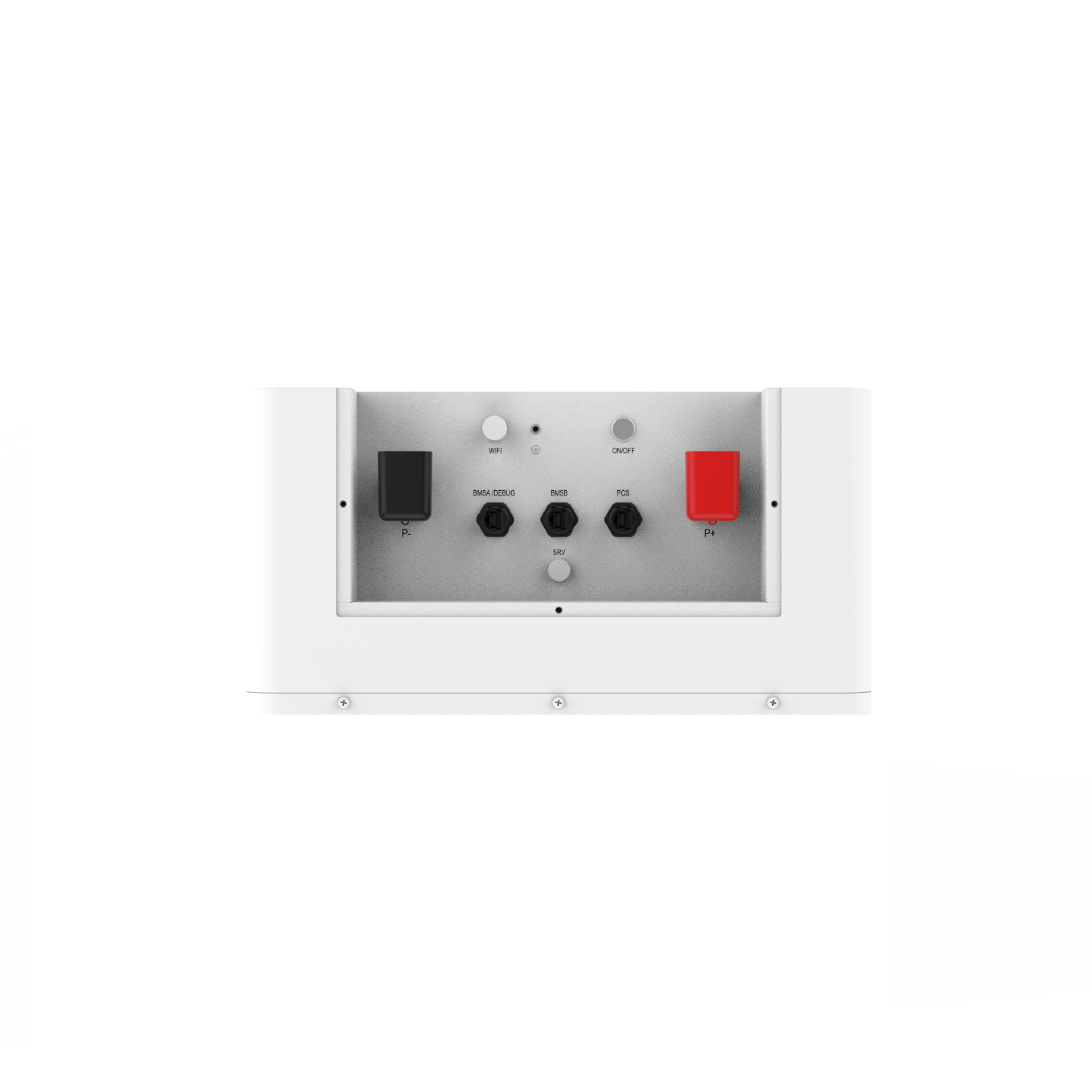

Equipped with dual RS485 ports, it enables seamless communication with inverters and additional battery packs, making it a smart component of the complete energy‑storage system.
ADVANCED FIRE SAFETY DEFENSE

ADVANCED FIRE SAFETY DEFENSE

Built‑in temperature monitoring and fire‑suppression design effectively mitigate thermal‑runaway risks.

Product parameters

16.08kWh<br/>low‑voltage ground‑caster energy storage battery
16.08kWh<br/>low‑voltage ground‑caster energy storage battery
16.08kWh<br/>low‑voltage ground‑caster energy storage battery
16.08kWh<br/>low‑voltage ground‑caster energy storage battery
16.08kWh<br/>low‑voltage ground‑caster energy storage battery

ModelYJC‑LV16
Battery TypeLiFePO4
Nominal Energy16.08kWh
Nominal Capacity314Ah
Nominal Voltage51.2V
Charge Cut‑off Voltage58.4V
Discharge Cut‑off Voltage40V
Recommended Charge / Discharge Current157A/157A
Maximum Continuous Charge / Discharge Current200A/200A
Depth Of Discharge95%
Net Weight121kg±2KG
Dimensions (W × H × D)460×852×238mm
Charge Temperature Range0~50℃
Discharge Temperature Range-20~60℃
Communication InterfacesCAN / RS485
Compatible InvertersSMA/Victron/SolarEdge/GoodWe/Growatt/Deye/Solis/SolaX/Sofar/LuxPower/SRD/Sunways/MUST/AFORE/Voltronic
Cycle Life≥10000 Cycles
IP RatingIP65
Certifications & Safety StandardsUN38.3
Product VersionULTRA

Product parameters are for reference only, subject to confirmation by our sales team.
