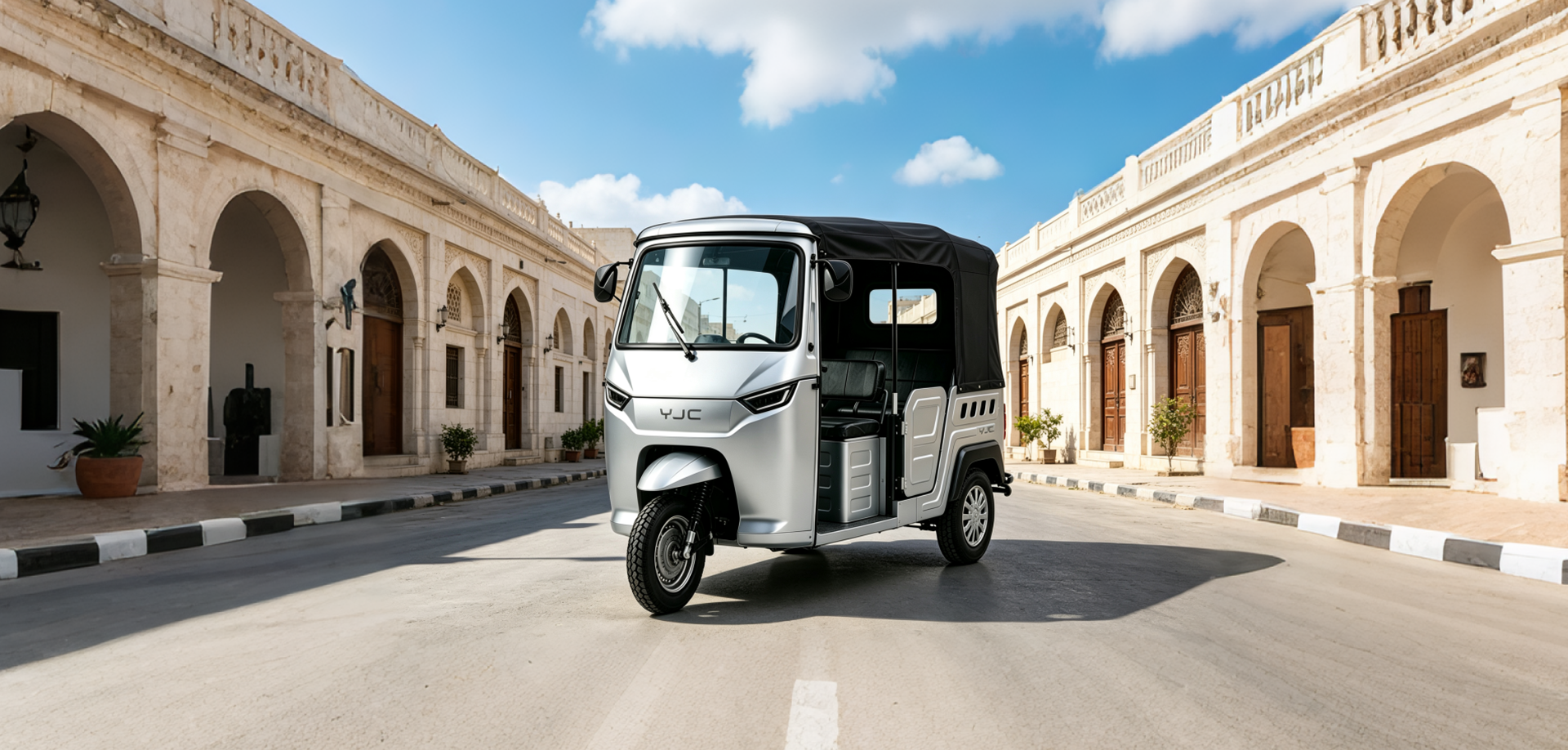

Electric Passenger Tricycle
YJC-E6
YJC-E6
Product Advantages
Long-Range Battery with Smart BMS
A 76.8V 206Ah, 15.8kWh LFP battery delivers over 230km of range. The smart BMS enhances safety and extends battery life.
Powerful 3000W Motor
The permanent magnet synchronous motor delivers speeds up to 50km/h and climbing capability up to 30°.
Comfortable Suspension System
Rocker-arm front suspension and independent rear suspension reduce vibration for a smoother ride.
Spacious 1+3 Seating
Seats one driver and three passengers, with a maximum loading capacity of up to 600kg.
Excellent Maneuverability
A 250mm ground clearance and 1.7m turning radius ensure easy handling on varied roads.
7-Inch Smart Dashboard
Integrates vehicle monitoring, fault alerts and a reversing camera for easier operation.
Smooth Drive and Reliable Braking
The differential gearbox ensures smooth, quiet power delivery, while front and rear drum brakes provide dependable braking.
Architecture Design Adapted for CKD Export
Through optimized design of the complete vehicle structure, the loading capacity of a 40-foot container is increased from 33 units to 40 units.
Automotive-Grade Manufacturing
Automotive-grade stamping, welding, e-coating, painting and assembly ensure lasting quality and reliability.
Product parameters
| Model | YJC‑E6 |
| Overall vehicle dimensions | 2690×1340×1800mm |
| Wheelbase | 2005mm |
| Wheel track | 1165mm |
| Ground clearance | 250mm |
| Max speed | 3000W, 50km/h |
| Range | ≥230KM |
| Climb degree | ≤30° |
| Minimum Turning Radius | 1.7m |
| Charging Time | 5hours |
| Brake distance | 3.8m with speed 30km/h, 7.2m with speed of 50km/h |
| Brake system | Front: 180mm/Rear:220mm/Drum brake |
| Unloaded weight | 410kg |
| Max loading | ≤600kg |
| Motor | Φ145 3000W permanent magnet synchronous magnetic encoder motor, Waterproof plug |
| Battery | 76.8V206AH Lithium iron phosphate Battery (15.8KWH) |
| Front shock | Double‑shoulder rocker arm shock absorber |
| Drive system | Differential gearbox (fully ground gear), ball cage silent transmission |
| Rear shock | Independent suspension |
| Dashboard | 7‑inch 3rd generation digital multimedia dashboard (with reversing camera) |
| Rated passenger capacity (including the driver) | 1+3 passengers, about 410kg |
Product parameters are for reference only, subject to confirmation by our sales team.

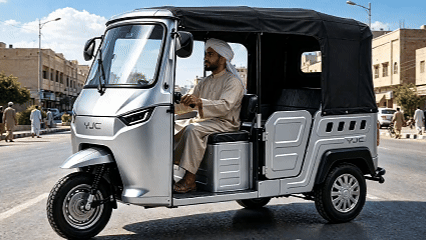

Reliable Power & Comfort for Urban Passenger Transport
Equipped with a 15.8kWh LFP long-range battery with smart BMS, the YJC electric passenger tricycle delivers a cruising range over 230km for safe and durable operation. Its 3000W permanent magnet synchronous motor supports a top speed of 50km/h and maximum 30° climbing capacity. Adopting rocker-arm front suspension plus independent rear suspension, it effectively reduces vibration and ensures a stable, comfortable riding experience for passengers.
